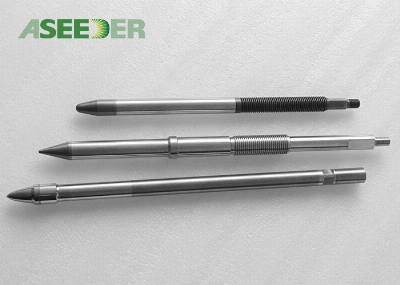

API Certified Choke Stem (TSI-BSS) , 3/4"-1 Max 15m Long

SEED is the leading manufacturer and exporter of tungsten carbide components,  Nozzles radial bearings, as well as provide machining service and hardfacing processes based in China, with a branch office set up in Houston dedicated for North American's market in sales and customer support, we are able to manufacturing all kinds of tungsten carbide parts and wear parts based on your drawing and material specification requirement for difference industry application, below is our choke seat and stem parts with stock material support fast delivery, if you want a customized choke parts welcome to contact us for details.Choke bean is often used in the positive choke valve for controlling the flow, Aseeder choke bean is same as Cameron type H2 big john choke bean, body Material: 410SS, lined with Tungsten Carbide (C10 or C25) , to protect them from corrosive and abrasive wear.On one side of the choke manifold, calibrated choke beans are used to control flow rate through the fixed choke box. Each bean is a specific diameter, usually in graduations of 1/64-132 inch, Depending on the type of equipment used, the size of the choke bean can be as large as 3 inches.We can do the QPQ treatment on the body of choke bean, to enhance the surface hardness1. Product Name & DescriptionNameDescriptionMaterialRemark3/4"SeatCHOKE SEAT, 3/4" ORIFICE 10K/15K410+tungsten carbide ZY06-Gsupport fast delivery1"SeatCHOKE SEAT, 1" ORIFICE 10K/15K410+tungsten carbide ZY06-Gsupport fast delivery3/4"-1"StemCHOKE STEM (TSI-BSS),3/4"-1" MAX 15MLONG304+tungsten carbide ZY10Xsupport fast deliveryOthersSupport customized designper customer's requirementoptional  2. Choke seat and choke stem dimentions1) 3/4" choke seat print & dimentions2) 1" choke seat print & dimensions3) 3/4"-1"Stem Print & Dimensions3. Chemical composition of 410 steelChemical Composition(%)CSiMnPSCrAcceptable range Min0.08////11.5Acceptable range Max0.15110.040.0313.5Measured0.120.470.570.0120.00712.54. Mechanical properties of 410 steelTest ItemUnitRequiredMeasuredConclusionTensile TestTensile StrengthMPa≥690714OKYield StrengthMPa≥550576OKElongation%≥1525OKReduction of Area%≥4569OKHardnessHBHB207-235228OK5. Physical properties of carbide ( SEED grade ZY06-G )Test ItemUnitRequired MeasuredConclusionTRSN/mm²≥28003106OKCobalt%5.5-6.56.0OKDensityg/cm314.65 to 15.0514.95OKHardnessHRA91.3-92.391.9OK6.Chemical composition of 304 steelChemical Composition(%)CSiMnPSCrAcceptable rangeMin/////18Max0.08120.0450.0320Measured0.0520.41.10.0340.00118.167.Mechanical properties of 304 steelTest ItemUnitRequiredMeasuredConclusionTensile TestTensile StrengthMPa≥515565OKYield StrengthMPa≥205250OKElongation%≥4056OKReduction of Area%≥5074OKHardnessHBHB≤235 205OK8.Physical properties of ZY10XTest ItemUnitRequiredMeasuredConclusionTRSN/mm²≥31503701OKCobalt%≥10.010.0OKDensityg/cm314.25 -14.6514.41OKHardnessHRA≥90.291.8OK  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
