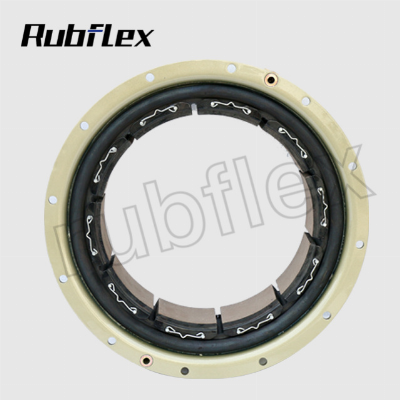

Rubflex CB 10" Inch 10CB300/142197jc Clutch Element Assembly Equivalent

Product DescriptionPneumatic clutch is a friction clutch with compressed air as the power source for operation. It is generally used on equipment that needs to transmit large torque and change the rotation direction quickly, such as oil drilling machinery, ships, large mechanical presses,excavators,ballmills, rubber and plastic machinery, etc. Introduction of CB element assemblyCB element assembly is designed and manufactured to provide dependable clutch or brake service in a multitude of industrial applications. It is suited to high speed, cyclic operations, as well as for coupling and general power transmission. All torque load is carried through the neoprene and cord actuating tube which absorbs damaging shock loads. The CB element assembly requires no lubrication or adjustment.CB element assemblies are available for drum diameters from four inches through 45 inches.The element size designation indicates the nominal outside drum diameter in inches, the clutch model, and the width of the friction material. Where diametral space is limited, or the torque required is greater than a single element can transmit, CB elements size 12CB350 and larger can be supplied as dual units. Features:1. Small appearance, but can transmit a lot of rotating force.2. It has strong durability and wear resistance.3. Long product life, safe and convenient operation.4. The clutch can be easily installed or uninstalled when transmitting power.ApplicationOilfield machineryPrinting machineryRubber-processing machineryMetal-forming machineryMold press machineryBoat/Marine   Product Parameters Size Friction Lining Thickness Maximum Speed Moment Of Inertia Weight Friction Area Minimum Drum Diameter Friction Lining Thickness Air Tube  Cavity New Born 3CB150 40.7 2000 0.00 0.8 90.3 74 5 1 0.12 4CB200 113 2000 0.01 1.1 148.4 99 3 1 0.17 5CB200 165 2000 0.02 1.6 193.5 124 5 1 0.28 6CB200 231 1800 0.04 3.2 232.2 150 4 2 0.32 8CB250 485 1800 0.08 4.1 393.5 201 3 2 0.49 10CB300 921 1800 0.25 8.6 587 251 5 2 0.82 12CB350 1500 1800 0.46 12 825.6 302 5 2 1.31 14CB400 2230 1800 0.71 14 1096.5 353 5 2 1.15 SI N.m 5.2bar rpm kg.m2 kg cm2 mm mm mm dm 3 Company ProfileFounded in 1975, Henan Dalin specialize in designing and manufacturing for pneumatic clutch and its accessories,our main products including:Disc clutch,VC clutch,CB clutch and petroleum drilling clutch assemble.CertificationsExhibition PhotosPacking & DeliveryFAQ1. Are you Manufactory or trade company?We are Manufactory specialized in designing and manufacturing for pneumatic air tube and its accessories.2. Do you have stock?Yes,we have most standard products in stock.3.What is your MOQ?1 PCS for most standard products.4. How to control quality?We have a very strict quality controlling system which promises that goods we produced are always of the best quality.5. How soon can you deliver the goods?We will deliver the goods in 3-5days after we receive the payment.6. About payment:We accept T/T, Paypal, Western Union or credit card.Please feel free to send us your detailed requirements,you should be satisfied with our service. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
