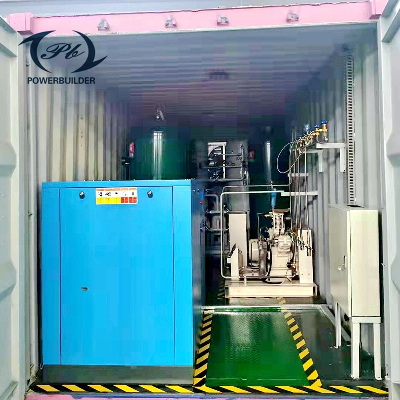

Containerized PSA Oxygen GeneratorRange of the Containerzied Oxygen GeneratorModelO2 Flow (Nm3/h)O2 Flow (LPM)Equivalent cylinder-7m3(per day Nos)Power With booster(Kw)Power Without HPBC(Kw)PurityContainer SizePB-5C5831713993%±3%2000*1000*1950mmPB-10C10167342216.593%±3%2000*1000*1950mmPB-15C15250512820.593%±3%3000*1700*2300mmPB-20C2033368433293%±3%20HQ 5200*2300*2600mmPB-25C2541785433293%±3%20HQ 5200*2300*2600mmPB-30C30500102554093%±3%40HQ 12000*2300*2600mmPB-40C40667136634893%±3%40HQ 12000*2300*2600mmPB-50C508331707657.593%±3%40HQ 12000*2300*2600mm1.Description for containerized oxygen PlantContainerized oxygen generator is consisted of the screw air compressor, air dryer, filters, buffer tanks, oxygen generator, electricity control system and the optional oxygen cylinder filling station. The complete system is installed and tested at factory, delivery to customer's turn-key project. PB containerized oxygen generator is removable, and makes the onsite installation and operation very easy. It can also save the cost for the decoration cost of the machine room.2. Main Features for easy installation oxygen Plant 1.Turn-key project and removable, easy for installation and operation; 2.Small and easy machine room;3.Heat and sound insulation treatment; 4.Smart monitor and control system, support for remote data transfer.3. Working Principles for containerized oxygen plant Air contains 21% Oxygen, 78% Nitrogen, 0.9% Argon and 0.1% other trace gases. Oxygen generator separates this oxygen from Compressed Air through a unique process called Pressure Swing Adsorption. (PSA).The Pressure Swing Adsorption process for the generation of enriched oxygen gas from ambient air utilizes the ability of a synthetic Zeolite Molecular Sieve to absorb mainly nitrogen. While nitrogen concentrates in the pore system of the Zeolite, Oxygen Gas is produced as a product.Oxygen generation plant's use two vessels filled with Zeolite Molecular sieve as adsorbers. As Compressed Air passes up through one of the adsorbers, the molecular sieve selectively adsorbs the Nitrogen. This then allows the remaining Oxygen to pass on up through the adsorber and exit as a product gas. When the adsorber becomes saturated with Nitrogen the inlet airflow is switched to the second adsorber. The first adsorber is regenerated by desorbing nitrogen through depressurization and purging it with some of the product oxygen. The cycle is then repeated and the pressure is continually swinging between a higher level at adsorption (Production) and a lower level at desorption (Regeneration).-Standard features - Control system with SIEMENS touch operated panelAutomatic start/stopBuilt in purity analyzer for continues monitoringReliable - built for uninterrupted operationDesigned for dynamic pressure loadingRobust design, piping from Stainless Steel Data-logging (saved on memory card) -Optional features- Molecular sieve moisture protectionGSM modem (remote start/stop, status SMS, alarm warning SMS)Flow meter with totalizeOxygen dew point sensorTemperature sensorPurity and pressure controlAudio/visual alarmModbus TCP/IP connectionRemote control -Applications-• Aquaculture• Feed Gas for Ozone Generators• Glass blowing• Leaching• NOx Reduction for Fuel Burners• Oxygen Lancing• Welding, Brazing• Wellness Related products Product details - Quality Control Process -PB use ERP management system, Which help plan and manage order information, from customer order to procurement, production, cost, inventory, distribution, transportation, finance. It universally helps to control and trace every process internally!- Our Service- 1. Setting trace file for every sold product, quarterly survey for every sold product.2. Providing remote instruction and training for free.3. Providing on-site services and repairs for free during warranty period 4. Spare parts and on-site service would be charged with best price after warranty period.5. 7*24 hours online service for free, solution within 48 hours.6. If customer required, assigning experienced after-sales engineer for on-site service with 7 days. (Visa apply should be considered)- After Sales Support -WarrantyThe Guarantee/Warranty Period shall be a period of twelve months after on-site startup & commissioning or eighteen months after shipment, whichever occurs first. If any trouble or defect, originating with the design, material, and workmanship or operating characteristics of any Goods, arises at any time during GUARANTEE/WARRANTY period, PB shall, at his own expense and as promptly as possible, make such alterations, repairs and replacements.On-Site SupportPB can do paid services of on-site startup, commissioning, installation supervision, training, by providing purchaser with the services of qualified English-speakingengineer at step shall obtain all permits and licenses required to perform the services under this Agreement. Company showPowerBuilder(PB), as a global manufacturer of gas purification and industrial automat
