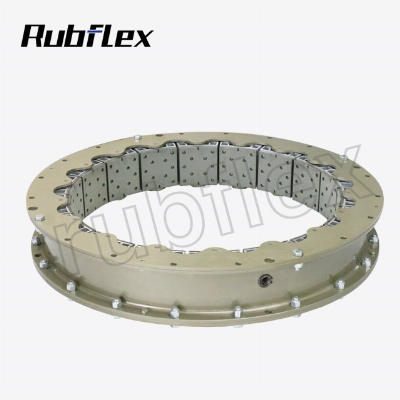

Rubflex Ball Mill Use 37vc650 Clutch Pneumatic Industry Clutch

Product DescriptionVC clutch is transmitted by torque bars. The loose actuating tube is contained within a housing formed by a rim and two side plates, and is replaceable. The torque bars, which are held in position by the side plates, pass through cavities in the backing plates of the friction shoes. Pressurizing the actuating tube forces the friction shoes to engage around a cylindrical drum. Leaf springs in the torque bar cavities of the backing plates retract the friction shoes when the actuating tube pressure is released.Product PicturesApplications and features  ApplicationOilfield machineryPrinting machineryRubber-processing machineryTire-building machineryMetal-forming machineryPunch uncoiler machineryMold press machineryBoat/Marine  FeaturesHigh-speed, low-torque.Reliable, low-inertia designHigh quality with ISO 9001:2000Self-adjustment and no lubricationCentrifugal force assists clutch disengagementSizes for reference  11.5VC50014VC50016VC50020VC50024VC65028VC65033VC65037VC65042VC65020VC100024VC100028VC100032VC100038VC120042VC120051VC160052VC120060VC160066VC160076VC1600   VC clutch components and advantagesRubber: Integrated nylon ply reinforced neoprene air tubeVentilated Construction: Promotes air flow across unit for rapid heat dissipationRebuild: Every single component is replaceable for rebuild purposesConfigurations: Single, Dual and Split configurationsFriction Material: Standard, Lo-Co, Hi-Co and Cork Friction linings37VC650 clutch friction lining37VC650 clutch and brake friction lining part no is 414585, Material is asbestos-free, which is environmental friendly with high friction co.37VC650 clutch spring and torque bar37VC650 clutch spring part no is 301333, toque bar part no is 201283, Our spring material is spring steel and torque bar material is #45 steel and #20 steel, hardness can reach 40-50, which is suitable for harsh application, like Grinding mills, marine propulsion, metalforming machinery, oil & gas machinery.37VC650 clutch tube37VC650 clutch rubber inflatable rube, part no is 402670, Rubber tube is totally made by hand, composed of outside rubber, inside rubber and cord fabric layer, then forming by vulcanization. Our company have started to manufacture the rubber tube since 1975, have over 45 years in this line, so can ensure you this key clutch part's quality.Product packageCompany informationHenan Dain specializes in designing and manufacturing for all kinds of pneumatic clutch and its accessories. Our products are mainly used on driving or braking devices for kinds of high-power mechanical transmission like mine, metallurgy, oil, steel, chemical industry, cement, vessel, papermaking, universal mechanical, etc.  CertificationsFAQQ1. Are you factory or trading company? A: We are factory.   Q2. What is your MOQ? A: 1 PCS for most standard products.   Q3. What is the delivery time? A: We have most standard products in stock, they can be sent in 3-5 days after we receive the payment. For large quantity or nonstandard products, we need to check according to the production status.   Q4. How to make the payment? A: We accept T/T, Paypal, Western Union or credit card.   Q5. Do you test all your goods before delivery? A: Yes, all products are fully inspected before delivery.   Q6. What is the warranty? A: Our warranty is one year. If you find any defect products, just send photos or videos to us. We will re-make it or re-fund them to you once we confirm it is our responsibilities.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
