China Bucket Elevator of Gypsum Powder Calcining Machine

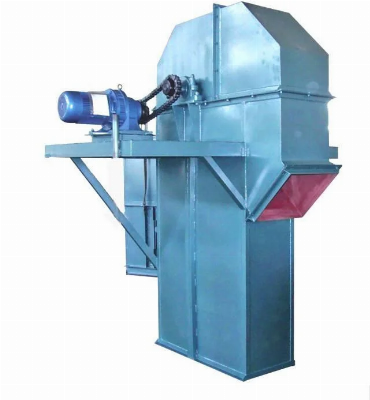

Operation Manual for TH500 type bucket elevator   . Characters and purposes: This kind of elevator has huge delivery value, high lifting height, steady and reliable operation and long time service remarkable advantages, etc. Its main performance and parameters fit JB3926-85 . Characters of this kind of elevator: 1.Huge delivery value. Compare with the same width bucket of TL, the delivery value of TH is nearly twice of TL. 2.Use assembly chain; combine wheel body and rim with high-strength bolts. If the chain wheel is worn down, you can just change rim. It is very convenient. It saves material and maintenance costs. 3.The bottom used heavy punch lever type tension device. That is, tension automatically without adjusting, keep constant tension force and normal running, avoid slipping and taking off chains. 4. Delivery device equipped with ZL reducer and JZQ reducer. Fix ZL reducer on the shaft head of main shaft directly. It does not need transmission platform , coupler and so on. The structure is compact, the weight is light, the noise is low, the operation is steady, etc. 5. The traction is a low alloy steel and high strength round-link chain. After heat treatment, it has high tensile strength and abrasive resistance and its service life is long. This machine discharging style is mix or gravity. Its feed style is ausweidung feed. It is suitable for bulk density of powdery, granularity, small blocky low abrading material is more than 1.5T/m ³. Like cement, coal, broken stone, sand, chemical fertilizer and grain, etc. The temperature of material must less than 250ºC.   . Type, lift ability and technical regulation of the elevators        Elevator typeTH500Hopper typeZhShDelivery value(m3 /h)75118HopperWidth  (mm)500Value  (mm)9.315Pitch of hopper (mm)688ChainRound steel DM×pitch22×86Cylinder number7Chain wheel DM(mm)800Hopper running speed(m/s)1.5Speed of mainshaft(r/min)35.8  Note: the hopper capacity in sheet 1 is the capacity that the hopper filled with water. It is similar to the reality filling quantity. So when we count delivery value, we did not take activity coefficient into account. Specific model selection, please look at sheet 2. Output  correction sheet 1 has given the delivery value. Fill hopper with correction factor. Sheet 2 Material characterΦNotePowder material0.95-1 Granular material 50mm0.7-0.85 General slight sticky powder, granular material0.6-0.7 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
