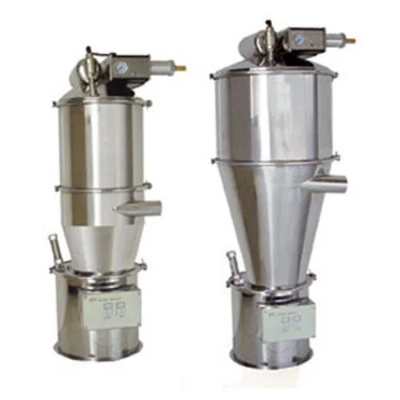

Vacuum Conveyor Loader for Granules/Powder Bulk Material Conveying

  Product DescriptionVacuum suction machine, also known as suction pneumatic conveying, relies on the air flow generated by a pressure lower than the external atmospheric pressure (the standard atmospheric pressure is equal to 101.325KPa) to transport materials along the flow path inside the pipeline.This suction machine is made of 304/316L material with an inner surface of 0.6 μ Mirror treatment. The standard model is intermittent conveying, and the numbers in the specifications represent the suction volume each time. After each suction reaches the rated volume, open the bottom flap valve, discharge the material, close the valve, and start the suction cycle again. Product ParametersRX Light Vacuum Suction MachineRX vacuum suction machines are divided into six standard types: RX-2, RX-3, RX-7, RX-14, RX-33, and RX-56. Different models of suction machines are selected based on different conveying distances, conveying volumes, and material densities, and detailed selection is made according to the table.Main Structures    Filter Elements    Multiple filter cartridge formsPolyester fiber coated filter element0.5/0.2μmLarge filtration area, maximum temperature of 80 ° CPE rod coated filter element0.5/0.2μmSuitable for sticky powder, maximum temperature of 60 ° CStainless steel folding mesh filter element5μmHygiene, large filtration area, maximum temperature of 130 ° CStainless steel sintered mesh filter element5μmQualified GMP, maximum temperature of 200°CFilter bag filter element5μmAnti static, hygienic, temperature 150 ° CIn-ServiceCustomer ReferenceApplicationCertification  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
