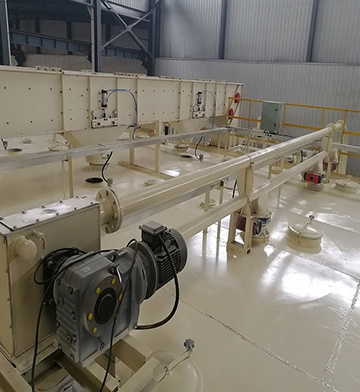

Continuous Vertical Tube Chain Conveyor for Bulk Material

Production DetailsIt is composed of one or more pipe chain conveyors. There are three basic forms of transportation: horizontal transportation, inclined transportation, and vertical transportation. A single pipe chain conveyor is usually composed of a driving device, tensioning device, steering gear, conveying pipe, chain material tray, and control system.Technical Parameters  ModelPower KWlinear velocity M/SSpeed R/minConveying capacity M³/HMAXIMUM TORQUE N·MMaximum tensile force  NNOTICEPC-804.00.3020.73.918101300Maximum pulling force at low speed up to 1.5 tons0.3624.94.7150410900.4027..65.21357980PC-1005.50.3017.56.029431800Low speed maximum pulling force up to 2 tons0.3621.07.2245215000.4023.48.022001350PC-1507.50.3013.413.752402450Low speed maximum pulling force up to 3 tons0.3616.016.4439020500.4017.918.239231840PC-20011.00.3011.427.490343590Low speed maximum pulling force up to 4 tons0.3613.732.9751829900.4015.236.567762700Units in the pipeline chain conveyor systemProduct Features1. Compact structure, small footprint, and the ability to change the conveying direction in three dimensions. It is composed of driving unit, rotating unit, steering unit, inlet and outlet components, chain pipes, observation ports, etc.2. The transported material is in a sealed state from the inlet to the outlet flange. There is no need to install a dust collector at the exit. Gas can be filled when transporting materials. Ensure no dust leakage into the environment during transportation.3. The material is transported smoothly along the pipe, with basically no internal movement, so there is less damage to the material. Slow bend transportation causes very few material particles to produce debris.4. Low energy consumption, long conveying distance, simple structure, few maintenance components, up to 60 meters horizontally and up to 40 meters vertically.5. It can be used in solid material industries such as food, chemical, new energy, and building materials.6. Multiple materials and specifications are available, such as 304 material, 316L material, Q235, Q345, etc.7. Currently unsuitable materials and categories: metal powder, particles with high wear and tear, mainly targeting materials with strong grinding force.Application Area IndustriesCommon materialsPetrochemical, plasticPP/ PE-LLDPE-LDPE-HDPE/ PC/ PVC/ PS/ PA/ PET/ ABS/ PTA/CTA/ EVA/ MELAMINAChemicalCalcium carbonate/sodium carbonate/sodium hydroxide/dolomite/titanium dioxide/Barium sulfate/zinc oxide/starch/kaolin/talc/fatty acid/stabilizer (lead/zinc)/alumina/emery/glass frit/lime/sand/clay/dry soft clay/polyester/resin/dissolvent/kiln products/titanium dioxideRubber Polymer/carbon black/silicon/deposited silicon/white filler/trace components/rubber compoundsPlastic Petrochemical raw materials/fillers calcium carbonate, kaolin, chalk/stabilized artificial rubber lead, calcium, zinc, tin/processing aid pigments/titanium oxide/lubricants/plasticizers DOP, DIDP, ESO/plastic particlesFood/PharmaceuticalMetric food/Rice noodles/flour/coarse flour/wheat bran/wheat flour/crystal sugar, rock sugar/milk powder/starch/malt/glucose/Cocoa bean/coffee beans/peanuts/black beans/vegetable oil, fat/citric acid/salt and additivesElectric Power/Metallurgical IndustryFly ash/desulfurization ash/dust removal ash/slag/copper powder/iron powder/aluminum powderBuilding MaterialCement/sand/stone/fly ashCustomer Reference/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
