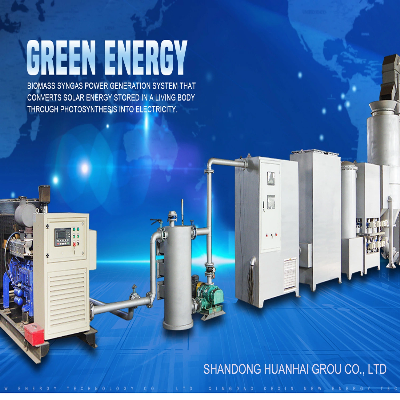

200kw 400kw 800kw 1MW Wood Chips Biomass Gasifier Power Plant

200KW 400KW 800KW 1MW 2MW 3MW 5MW 10MW Fluid bed wood chip biomass gasifier and generator power plant project introduction:1) Preparation of Biomass (wood chips ,straw): Required humidity of wood chips,straw should be less than 18%.  Required size should be less than 5cm. Heat value > 3200kcal/kg2) Biomass Gasification Processing flow:  Straw, wood chips, Saw dust is feeded to fixedbed gasifier by feeder,which react with air to be fuel gas. The fuel gas will be CO, H2,CH4 ,CnHm etc. the heat value is around 950~1200kcal/Nm3.3) Gas cleaning process:  Use water as media of purification process . Based on differenttemperature and ash content in different stage , choose to use different wetpurification device with different capability in order to well remove tar anddust till gas quality meet the demand of IC Gen-set. Meanwhile, the coolingwater can be recycled to meet zero pollution ,zero release.4) Power generation process:  after cleaning and cooling The gas is sent to engine passed throughbuffer tank. Generator work to output power driven by engine. The power isdistributed to each user .rated power of each unit gen-set is 400kw5) Waste Heat Application Process:  The waste heat of IC engine are from two parts. One part: exhaust gasthe temperature is around 500ºC. It can be used for boiler and heat water .the other part: the cooling water from cylinder of engine. The temperature is60ºC. It can be used to supply hot water.  Use PLC controlling system . Track and monitor signal through sensorto control various equipments . Temperature inside gasifier and quality ofgas is able to be controlled automatically. PLC controlling system enhancethe stability , and efficiency of system.  Specification parametersNameMade in China hotel with 50KW biomass syngas power generation equipment, can be fired heating boiler, self-use power generationPower generationModelSyngas productionRaw material consumption10KWKX-30A30m3/h15kg/h20KWKX-50SA50m3/h25kg/h30KWKX-100SA100m3/h50kg/h50KWKX-150SA150m3/h75kg/h100KWKX-300SA300m3/h150kg/h150KWKX-450SA450m3/h230kg/h200KWKX-600SA600m3/h300kg/h250KWKX-750SA750m3/h330kg/h300KWKX-900SB900m3/h450kg/h400KWKX-1200SB1200m3/h600kg/h500KW-1MWKX-1500SB1500m3/h750kg/hCaloric value of syngas1000-1200KcalGasification effiency>75%Voltage power380V/400V/410V/420V 50Hz/60Hz       (Customizable)Types of raw materialsWheat straw, peanut shells, rice husks, corn cobs, corn stalks, wood, wood chips, wood chips, nut shells, walnut shells, macadamia shells, pistachio shells, coconut shells, hazelnut shells, chestnut shells, etc., discarded cardboard boxes (Various agriculturalBiomass raw materials...)usePyrolysis and gasification of various agricultural biomass and other raw materials, produce biomass synthesis gas, use biomass synthesis gas to generate electricity, or apply it to heating and so on./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
