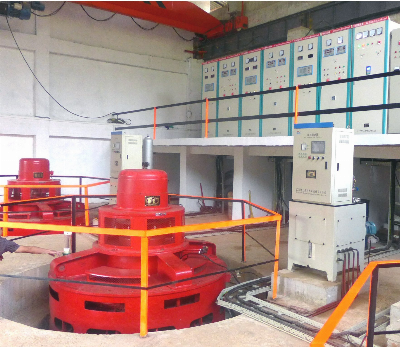

Kaplan Hydro (water) Turbine Generator Unit

ZDJP502-LH-95 SF1100-10/1730  Kaplan Turbine Geneator Unit1.  Main Characteristic Parameter of Turbine and GeneratorMax Head m21.5Turbine ModelZDJP502-LH-95Design Head m19.8Generator ModelSF1100-10/1730Design Flow m3/s6.79147Generator Standard Pole Number10Elevation m800Axial Water Thrust Coefficient0.85Runner ModelZDJP502Axial Water Thrust  10kN11.92949951Designed Unit Speed  r/min128Cavitation Erosion0.5Design unit Flow [m3/s]1.7Allowed Suction Height  M-1.788888889Model Efficiency0.927Calculated Governor Power 10KN1325.472428Efficiency Revision-0.017Round up Governor Power 10KN1000Actual Turbine Efficiency0.91Calculated Valve Diameter M1.799677692Generator Efficiency0.94Round Up Valve Diameter M1.8Plant Output  KW1128.41079Frequency Hz50Runner Diameter Calculation M0.947525998Max. Speed Rise60Round Up Runner Diameter M0.95Max. Pressure Rise %50Operation unit Flow [m3/s]1.691157208Specific speed mkw402.1872037Operation Unit Speed RPM128.0979739Unit runaway speed rpm120Turbine Discharge m3/s6.79147Turbine Runaway Speed rpm562.0697801Turbine Output Kw1200.43701First critical speed rpm730.6907141Generator Output Kw1128.41079Generator Runaway speed rpm1000Turbine Calculation Speed r/min599.5410987Generator output Kw1100Turbine Standard Speed  r/min600Generator Voltage V6300Generator Standard Speed r/min600Power factor0.8Generator Calculation Pole Number10.00765421Generator Current  A126.01268372. Spare Parts and Special ToolsTable -3 Spare parts for Turbine (per unit)No.Appell.UnitQuant.1Guide Vane Upper, Middle, Lower BushingSet1/22Guide vane seal ringNo/Set13Shear pin of guide vaneSet.14Seal ringsSet25Springs of all typesSet.2Table -4 Spare parts for Generator (per unit)No.Appell.UnitQuant.1Radial Bearing Shellset/unit12Thrust padset/unit13Brake block, seal ring, springSets.14magnet pole keyset1/85Insulation board, insulation sleeve, etc for bearingpcs16stator dove-end wedgeset1/3 of spare wireTable -5 Special Tools for Turbine (per type unit)No.AppellUnitQuant.1Runner dismantle toolSet12Special Wrenches and Lift eyeboltSet1Table -6 Special Tools for generator (per type unit) No.Appell.UnitQuant.1Runner, dismantle toolSet1 2Wrenches of all kinds1 set 3Turning tool1 set 4. Automatic Components4.1 List of automatic components for turbine (per unit)Table -11No.Appell.ModelQuant.Note1Shear pin transducerCJX-916Water distributor protection2Pressure transmitterZYB1Pressure at spiral case inlet3Pressure transmittercontrollerZYB1Vacuum pressure at draft tube inlet4Stroke switch HL2(wicket gate servomotor position)5Vacuum gauge 1Draft tube vacuum6Air admission valve 1Vacuum destroy, automatic7Water lever sensor 1Pressure type8Fore bay monitor system 1CCTV system4.2 List of automatic components for generator (per unit)Table 12No.Appell.ModelQuant.Note1Resistance thermometer Pt100WZPD-Pt1006 piecesMeasure Stator temperature2Resistance thermometer Pt100WZP4 piecesBearing Oil temperature measure3Flow indication signalerSLX2 piecesBearing Cooling water outlet pipeline4Pressure GaugeY-1002 piecesBearing Cooling water inlet pipeline5Pressure GaugeY-1002 piecesmain Cooling water inlet pipeline6Transistor plunger pumpQB36-A2 piecesMotored oil pump7Stroke SwitchLXW2 piecesbrake8Gear speed detector 1 pieceShaft rotation speed9Gear speed transducer 1 pieceShaft rotation speedSection C:           Technical DrawingsZDJP502-LH-95 Kaplan Turbine Efficiency CurveZDJP502-LH-95 SF1100-10/1730 Turbine Generator Installation LayoutButterfly Valve (D741X-10/DN1600)YWT-1000- 6.3 Governor (HPU)  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
