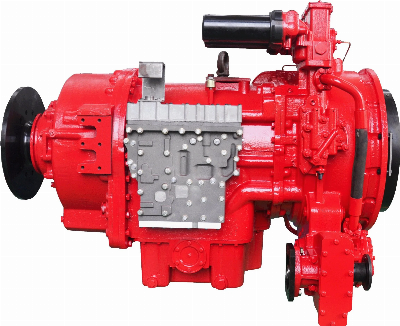

High Power Gear Box or Transmission for Fracturing Truck (SE23800)

Product DescriptionSE23800 series hydraulic transmission is a product specially designed by Winstar for large-scale fracturing equipment in the oil field and shale gas field. It adopts mature planetary transmission scheme and high reliability and high safety factor design. The maximum input power is 2480kW. The maximum input torque is 13980N•m, the mass is about 2150kg, and there are 8 gears. It is widely used in 2500-3300 HP fracturing equipment for oil fields and shale gas.  Product Parameters  TypeMax input torque N•mMax input power KWDry weight kgMax input speed r/minTorque converter K0/ circle diameterPlanetary transmission gear reduction ratioMain applicationSE23800128802300215021001.96 /Ф584Neutral: 0, first gear 3.79, second gear 2.73, third gear 2.22, fourth gear 1.78, fifth gear 1.59, sixth gear 1.28, seventh gear 1.00, eighth gear 0.722500 ~ 3100 HP fracturing equipmentOur AdvantagesHigh power hydraulic transmission is widely used in oil and gas field production equipment, special vehicles, special engineering machinery and other fields. It has the advantages of simple operation, high reliability, long service life, automatic stepless speed regulation, power shift, vibration isolation and shock absorption, overload protection and strong adaptive ability. It can effectively prolong the service life of engine and working machine, improve comfort and safety, and reduce the labor intensity of operators. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
