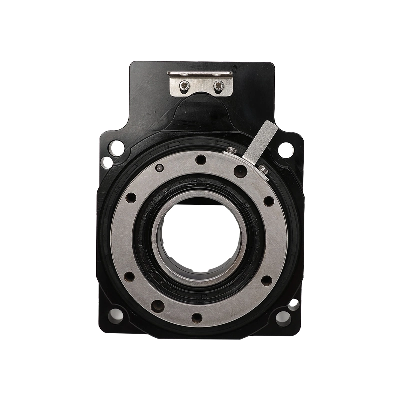

Ptn85 Hollow Rotary Platform for NEMA42 Stepper Motor

PTN85 Hollow Rotary Platform For Nema42 Stepper MotorSpecificaitons:1)Product size: 852)Ratio range:5/10/183)Motor range: type 42/57                   (stepper motor)                        50/100/200/400W AC  (servo motor)4)Input installation size code: 1450M470LR34.5 (ratio:5/10); 1450M570LR34.5 (ratio:5/10); 838.1M466.7-LR34.5 (ratio:5/10);830M345LR30 (ratio:18);830M446LR30 (ratio:18); 5223.543.83LR34.5 (ratio:18); 838.1M466.7LR34.5 (ratio:18)5)Work objects can be directly locked: the rotating disk surface can directly lock the work objects to improve the convenience of workpiece loading;6)Convenient wiring: the rotary platform is of hollow design, which is convenient for wiring or piping;7)High accuracy: the positioning accuracy is less than 1arcmin; The repetition accuracy can reach ± 5arcsec;8)Stable operation: the panel rotates smoothly and smoothly, and the cutting and positioning is fast  SpecificationsStepper MotorServo MotorAdapter motor  Nema42Nema5750W AC100W AC200W AC400W ACRotating platform bearing-Cross roller bearingReduction ratio-1:181:5/1:101:181:5 / 1:10Allowable torqueNm920920Moment of intertiakg▪m22500X10-6Output allowable speedrpm200Allowable intertia load(pitch force distance)Nm15Allowable axial loadN500Return Backlasharcmin≤1Repeat positioning accuracyarcsec±15Deviation of rotating platformmm0.01Parallelism of rotating platformmm0.02Concentricity of rotating platformmm0.01Precision lifeh20000Degree of protection-IP40WeightKg1.2 Specificationsi2DirectType planetary reducerRight angle type cornerApplication techincal parameters PRF60PX60DRS60Related output torque3Nm3185530436503054060307205030101240 -Emergency stop torqueNm 2 times to T2N2.5 times to T2N2 times to T2NRelated input speedrpm 400050001000Max. input speedrpm 8000100002000Return backlasharcmin ≤10≤3≤3Torsional rigidityNm/arcmin 1.871.5Allowable radial force4N 2401530500Allowable axial force4N 220630200Available lifeHr20000 (Continuous operation reduces service life by 50%)Efficient%96%Operation temeratureºC -15ºC~ +90ºCDegree of protection -IP65Lubrication -Synthetic greaseNoisedB(A)≤61≤58≤65Company ProfilePackaging & Shipping1.Lead time: 10-15 working days as usual, 30 days in busy season, it will based on the detailed order quantity;2.Delivery of samples: by DHL, Fedex, UPS, TNT, EMSFAQ1. who are we?Hefa Group is based in Guangdong, China, start from 1998,has a three subsidiaries in total.The Main Products is planetary gearbox,timing belt pulley, helical gear,spur gear,gear rack,gear ring,chain wheel,hollow rotating platform,module,etc2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3. how to choose the suitable planetary gearbox?First of all,we need you to be able to provide relevant parameters.If you have a motor drawing,it will let us recommend a suitable gearbox for you faster.If not,we hope you can provide the following motor parameters:output speed,output torque,voltage,current,ip,noise,operating conditions,motor size and power,etc4. why should you buy from us not from other suppliers?We are 22 years experiences manufacturer on making the gears, specializing in manufacturing all kinds of spur/bevel/helical gear, grinding gear, gear shaft, timing pulley, rack, planetary gear reducer, timing belt and such transmission gear parts5. what services can we provide?Accepted Delivery Terms: Fedex,DHL,UPS;Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;Accepted Payment Type: T/T,L/C,PayPal,Western Union;Language Spoken:English,Chinese,Japanese  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
