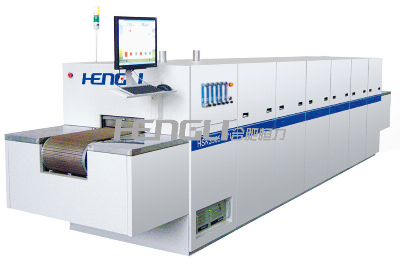

CE Approved, Hsk3505-0711z Thick Film Firing Belt Furnace

Application of Belt Furnace: For high temperature firing and heat treatment of products such as Hybrid IC, chip-R, terminals of surface mount components, LTCC, stainless steel cartridge heater, PV thin-film cell, etc. Features of Belt Furnace: FEC ceramic fiber heaters, fast thermal response, uniform temperature control, efficient use of energy, eco-friendly, and complete product series. Operating Temperature of Belt Furnace: 200-1050 deg. C. Options: Temperature profiling system, computer monitoring system, ultrasonic belt cleaning system, etc. Notes: HengLi also manufactures custom designed furnaces. Max Temperature1050 deg.cRate Temperature900 deg. cBelt Width350mm/14"Tunnel Height50mm/2"Heating Length3150mm/124"Cooling Length1905mm/75"Control Zones7Conveyor Speed30-200mm(1.2"-8")/minOverall System Width1200mm/47"Overall System Length6905mm/272"Overall System Height1350mm/53"Typical Temp. Uniformity+/-3 deg. cNet Weight1200kgSpare Part1 set heating board, 1 solid State Relay SpecificationHSK3505-0711 Firing FurnaceWe (Hengli Eletek)  have been designing and manufacturing industrial furnaces for over 30 years as part of a major electronics research institute. We were incorporated as a company in 1992 and today occupy a state-of-the-art ISO9001-certified design and manufacturing facility. Today, our furnaces are used by customers in Australia, Austria, Canada, China, Costa Rica, Hong Kong, Hungary, India, Indonesia, Israel, Italy, Malaysia, Mexico, Netherlands, Russia, Singapore, Slovenia, South Korea, Spain, Sri Lanka, Switzerland, Taiwan, Turkey, UK, USA and Vietnam. We have served the furnace needs of many renowned customers including Apple, IBM, Ferro, Eaton, Schott AG, EBG, First Solar, NASA, Neways Micro, Coilcraft, PCB, 3G Solar, Materion, and more./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
