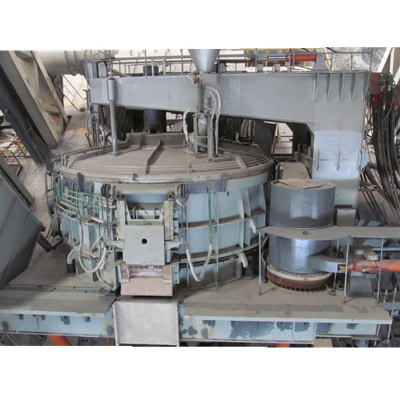

Eaf 5t 4000kVA Spout Electric Arc Furnace

1. Technical parameterSNDescriptionUnitData1Rated capacityt5T3Max. tappingt6T2Diameter of shellmmΦ32003Diameter of electrodes pitch circlemmΦ8504Electrode diametermmΦ3005Electrode traveling strokemm17006Electrode traveling speedm/minUp:4  down:38Max. steel tapping angle 42°9Max. slag tapping angle 12°10Max. roof rotary angle 85°11Roof lifting heightmm20012Rated transformer capacitykVA400013Primary voltage of transformerkV1114Secondary voltage of transformerV275-150 (4 steps)15FrequencyHz5016Hydraulic system working pressureMPa817Hydraulic medium Hydraulic oil18Cooling water circulation flowm3/h80   2. Cooling water requirement:Water pressure                                                                    0.3MPaInlet water temperature                                                      ≤35ºCOutlet water temperature                                                   ≤55ºCWater quality(GB/T10067.1-1988)                                    Industry clean water3. Supply listSNItemQtyRemark1Mechanical parts  1.1Furnace body1 1.2Tilting mechanism & locking device1 1.3Furnace roof1 1.4Roof lifting and rotating mechanism1Hydraulic driven1.5Electrode traveling mechanism1Hydraulic driven1.6Feeding hopper(on the roof)1 1.7Cooling water distributor1 1.8Hydraulic power pack1Proportional valve: Parker2Electrical parts1 2.1Furnace transformer14000kVA/11kV2.210kV High voltage system1KYN28 panel2.3Short net1Red copper tube2.4 Lower voltage power distribution & control panels1GGD panel2.5PLC automation and HMI system1Siemens PLC S7-300Supplied by the Buyer:1) Furnace refractory lining; Hydraulic medium, lubrication medium and cleaning medium; Graphite electrodes;2) Civil works and design (Seller provides furnace foundation drawings and civil work requirements), embedded    furnace foundation parts;3) Water supply and gas supply main inlet are laid to Seller's equipment connection point, H.T. incoming line is    connected to seller's H.T. switchboard, L.T. are connect to Seller's L.T. distribution panel.4. Quotation conditions4.1 All present and/or future taxes and duties related to the execution of this Contract, income tax levied on the      Contractor's personnel, tax on foreign contractor's business operated in Vietnam in accordance with existing      laws, shall be borne by the Owner;4.2 The Seller will dispatch engineers(Includes mechanical, electrical, PLC, hydraulic, transformer, H.T, etc) to      supervise furnace installation and commissioning. Round trip air ticket, local traffic transportation and      accommodation cost are borne by the Buyer. Site supervision fee is $100 USD for 1 engineer per day;4.3 Seller's engineers will train Buyer's employees about furnace operation and maintenance at job site.Workshop:Sales team:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
