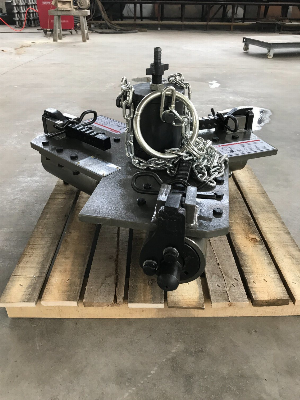

Three Rammers Furnace Wall Vibrator Intermediate Frequency Furnace Lining Tools

                            All the Pneumatic VIbrator rammers Model for Reference Three Hammers Furnace Wall Vibrator Technical Data:  (Suitable for 8-15t furnace lining)StyleKLQ-Z-SHammer QtyThreeGas Consumption0.4m³/mTotal Gas Volume1.2-1.5m³/mAir Pressure needs0.7-1MpaMain Vibration1780-2290NFrequency750-1000NAdjustment0-280mmWorking Principle:Mainly use the dry lining material use air head to strike the inner wall of the intermediStyleate frequency furnace collapse mold, make the large and small particles of the lining material fill the gaps with each other, to achieve the effect of compacting the lining material.The pneumatic furnace building machine is composed of a gas distributor, a cylinder liner, an air hammer, a length adjustment rod, a chain, a steel plate mold and accessories The main parts are introduced as follows:Advantage::automatic rotation, continuous hammering, saving time and effort; uniform ramming, no particle segregation, high ramming density; adjustable vibration force and vibration frequency, strong adaptability; quality assurance of furnace construction; improvement of furnace construction environment.Pneumatic Refractory Vibratory Tamper use ProcessLaying mica paperAdd material to the bottom of the furnaceTamp the bottom of the furnaceSet up crucible moldAdd material to the wall of the furnaceTamp the wall of the furnaceUse ractory Vibratory Tamper  How the Vibrator worksHow the Vibrator packedCasen factory  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
