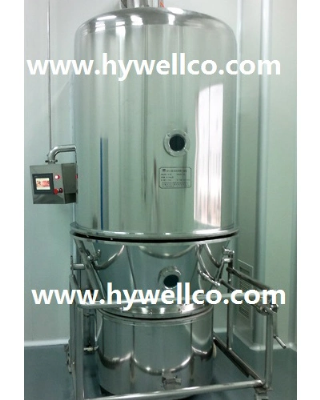

High Efficiency Fluid Bed Dryer -Gfg Series Pharmaceutical Machine

Working PrincipleThe main body structure consists of bottom bowl, movable product bowl with trolley , fluidized chamber, expansion chamber (filter housing). The bottom bowl, product container and fluidized chamber are inflatable silicon gasket sealed with compress air to assure the reliable sealing.The air passes through the primary filter(G4), medium efficiency filter (F8), high efficiency filter(H13 -optional)and heater with accurate temperature control. The inlet air flow, speed and pressure is variable and controllable. And then the purified and heated air is sucked from the bottom of machineby theexhaust fan and passed through the screen plate of raw material tank into the work chamber, the state of fluidization is formed through stirring and negative pressure. The moisture of the materials will evaporate and removed rapidly out from the exhaust pipe and the raw material is dried quickly.Features1. The state of fluidization to achieve fast heat transmission .2.Seal negative pressure operation, there is no dust.3.Using the anti-static filter, it is safe in operation;4.The equipment has no dead corner so it is easy to clean and there is no cross pollution;5.It is in conformity with the requirements of GMP.6. Machine materials : AISISUS304 , AISISUS316L, and other material .7. For the electrical component  , we mainly use international brand such as ABB ,Siemens or Schneider.8. Control system has more choices, such as push button , HMI+PLC and so on.                                       9.  Exhaust Fan speed is controlled by VFD (Optional).Application1. It use to dry the granules from Granulating machine , such as YK Series Swaying Granulator and high speed wet mixing granulator , ZL Extruding Granulator.2. Suitable for drying humidity block or powder raw material in Pharmaceutical, foodstuff, feed, chemical industries and so on fields.3.Large granules, small blocks and adhesive material.4.The materials that volumes might vary during drying process.Optional ChoicesFor the main electrical components , we have international brand choices such as ABB , Siemens or Schneider or others.For the material for the machine , we have choices on AISISUS304 , AISISUS316, ,carbon steel and so on .For the control system , we have choices on push button, PLC+HMI and so on .Hywell can design the explosion-proof system for our dryer based on the customer request.For the heating system for the machine , it is very flexible. we can configure it based on the customer site conditions ,such as steam ,electricity , and so on , all of them we can design it to match our drier.OUR SERVICESPre-sale serviceWe Invite customers to visit our company and communicate on technical requirements face to face.Sale serviceResponsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.After-sale serviceWe provide installation, debugging, maintenance, training and other services (Optional); Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.Quality promiseOur company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain. Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage, our company offer free maintenance or replacement.  ModelGFG-200GFG-300GFG-400GFG-500GFG-650Bin capacity(L)200300400500650Production capacity(Kg/time)30-6050-10060-12070-150100-200inlet air temp(ºC)50-10050-10050-10050-10050-100Blower power(kw)111518.52230Steirring power(kw)1.11.51.51.51.5Steam consumption(kg/h)1440170210240280Compressed-air consumption(m3/h)0.60.60.60.90.9overall dimensions(mm)2800x1350x27002900x1450x27003100x1650x29003100x1650x30003200x1750x3100  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
