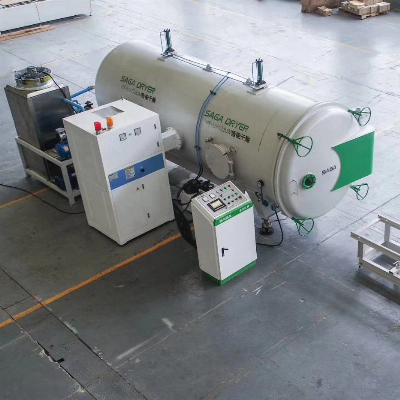

Radio Frequency Vacuum Wood Dryer Timber Drying Machine Equipment

Radio Frequency Vacuum Wood Dryer Timber Drying Machine Equipment HF vacuum wood wood drying kiln is a relatively small and fast timber drying equipment. It adopts HF electric field as heating source, uniformly radiate to timber, directly heat moisture, speed up moisture removing by vacuum water absorption function, which is extremely suitable for solid wood and all kinds of timber processing factory. Benefit you can count on: *Vacuum Drying -- 60°C starting to vaporize, which can reduce wood cracking and deformation while achieving low temperature drying * Warp deformation Recovering --- Wood clamped by hydraulic system before drying, warping deformation to be recovered when soften , making outturn greatly improving and make easy palletizing* Quick heating --- No need heat conduction, inside and outside of wood timber are heated at the same time* Fast dehydration--- During the heating process, stepped temperature difference between inside and outside of wood can speed up the water movement from inside wood to outside wood* High quality--- Avoid outside & inside cracking and color change, by taking control of heating speed, relative vacuum degree and condensing rate. * Good adaptability---It can achieve both low temperature and high temperature drying, also can eliminate stress, solidify resin and apply to dry almost all kinds of wood* Full-automatic & Easy operation --- Automatic feeding and discharging device, drying proceeding under unattended mode* Cost saving --- Low dry shrinkage and material saving * Sterilization function & Eco-friendlyModel List ModelHFVD30-SAHFVD45-SAHFVD100-SAHFVD120-SAOverall Dimension (mm)HF generator1100*960*1950mm1100*960*1950mm1250*1250* 2050mm1250*1250* 2050mmTank4200*2150*2000mm5700*2150*2000mm7300*2300* 2200mm9300*2300* 2200mmGross Weight6.4T7.3T10T11TInside Diameter(mm)Ф1700Ф1700Ф1900Ф1900Stack Timber Size(mm)3000*1000*1000mm4500*1000*1000mm6000*1250*1250mm8000*1250*1250mmStack Timber Capacity3m34.5m310m313m3HF Output Power30Kw30Kw50Kw50KwTechnical ParameterHigh Frequency Vacuum Wood Drying Kiln HFVD45-SA  High frequency generator size1000x1000x1900mmDrying tank size5700x2150x2200mmCooling tank size 1500x1150x2000mmGross weight 7.3 tonInside diameter1700mmTank thickness12mmEffective drying size 4500x1000x1000mmHF input power40kvaHF output power30kwTemperature monitorFiber optic temperature sensor,not disturbed by HFMoisture monitorWeighting system(SAGA patent technology),most accurate,not disturbed by HFCooling systemStainless steel condenser with stainless steel water-ring vacuum pumpControl systemFully automatic with PLC touch screenHydraulic cylinder4 ton with 2 pcs cylinderVacuum pump Stainless steel 7.5kwFeeding wayAutomaticDoor of tankEars door,more safe and powerfulWeighting systemUnder the tank,can weight the wood every timeMain Features *Fast drying cycle*Automatic feeder*Large capacity*PLC automated systems with touch screen control panel*Uniform heating*No sparking or bending problem*Veneer, panels, hardwood*Weighing testing technology*Fiber optic temperature testingDrying Time TableWood Species Start MoistureEnd HumidityDrying Time(Hour)Extremely Hard WoodMahogany valued wood Density>1.015%10%8030%10%150Medium Hard WoodBeech/Oak/Ash/Teak,etc Density>0.620%8%7040%8%120SoftwoodPine Density
