Heat Exchanger Units for Heating and Ventilation Industry

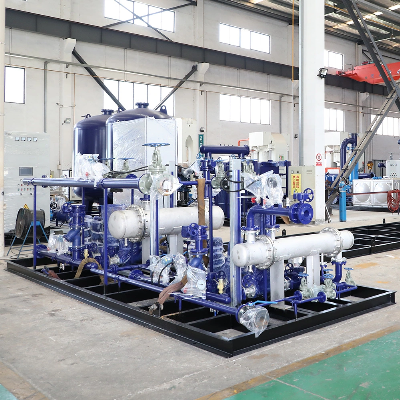

Product Description Plate heat exchange unit is an integrated heat exchange system composed of plate heat exchanger and related auxiliary equipment.1,The core component of plate heat exchange unit is plate heat exchanger. Plate heat exchangers use efficient plate design and optimized fluid channels to provide efficient heat exchange performance.2,The plate heat exchange unit also includes auxiliary equipment with the heat exchanger to ensure the normal operation of the entire system. Auxiliary equipment includes pumps, valves, meters, control cabinets, etc., which are used to regulate the flow, pressure and temperature of the fluid to maintain the optimal working condition of the heat exchanger.3,Plate heat exchanger units usually have a solid frame and support structure. Typically made of steel, these structures provide strength and stability, ensuring the safe operation of the entire unit.4,Control system: The plate heat exchanger unit can be equipped with a control system for monitoring and regulating the heat transfer process. The control system can monitor the temperature, pressure, flow and other parameters in real time, and realize the automatic control of the entire heat exchange unit, without the need for special duty.5,There are remote communication functions, communication methods are GPRS wireless, industrial Ethernet and Modbus, etc., according to different communication methods reserve the corresponding remote control interface to achieve remote control.6,Customized design according to different process requirements and fluid media to meet user needs.Product ParametersPartial heat exchange unit parametersThe primary heat source is 95/70ºC, the secondary heat source is 60/80ºC, and the thermal index is 60W/sq.mSerial numberUnit typeHeat exchange capacity(KW)Heating area(sq.m)Secondary water flow(T/H)Overall dimension(mm)WeightKg1AMHJ/SN-3003005000132300*1500*14009502AMHJ/SN-60060010000262400*1500*140010003AMHJ/SN-1200120020000522600*1500*140014004AMHJ/SN-1800180030000782800*1700*140018005AMHJ/SN-24002400400001042800*2000*140020006AMHJ/SN-30003000500001293000*2100*200022007AMHJ/SN-36003600600001553200*2300*200030008AMHJ/SN-42004200700001813300*2300*200040009AMHJ/SN-48004800800002073500*2500*2500550010AMHJ/SN-54005400900002333700*2600*2600600011AMHJ/SN-600060001000002583700*2600*2500620012AMHJ/SN-720072001200003103700*2600*2500640013AMHJ/SN-900090001500003874000*2600*2500700014AMHJ/SN-10800108001800004654000*3300*2500800015AMHJ/SN-12000120002000005164300*3300*2500900016AMHJ/SN-15000150002500006455000*3500*250010000Detailed Photos Company ProfileOur AdvantagesFAQ/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
