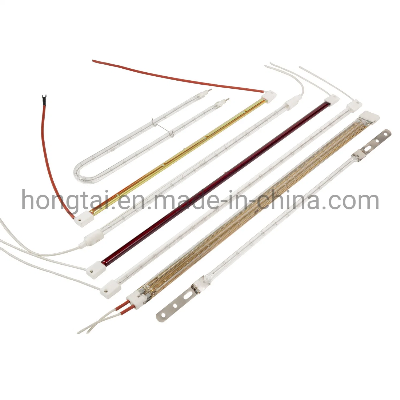

230volt Industrial Far Infrared Halogen Quartz Heating Lamp

Product DescriptionInfrared Quartz Heater is used iron chrome alloy wire(FeCrAl wire) as a heating unit and uses quartz tube as protection sleeve. Its color temperature is 1800K and the wavelength range is 2.2-3.5 micron. Because the main radiation band is located in medium wave area, it is most suitable for water drying and widely used in industry drying, etc. Power, voltage and lamp's length can be produced according to customer's requirement and drawing. There are two installation methods: Horizontal operation and vertical operation. In order to improve radiation efficiency, we can make half golden plated or coated white processing.  Type of  1500W Halogen Infrared Quartz Heater1. Infrared Quartz Heater: Using quartz single tube as the sleeve of the medium wave infrared heater. The cross section of the heater can be ID8*OD10, ID10*OD12, ID14*OD17, ID17*OD20, ID28*OD34 and so on. Working life reaches 5000 hours. 2.  Infrared Quartz Heater: Using quartz twin tubes as heater sleeve. Because the special twin tube design, this kind of heater has high mechanical strength. The maximum length we can make is 6 meters. And the working life reaches over 5000 hours. When you inquiry, pls specify the following details1. Diameter, total length, voltage, power, working temperature 2. Termination zone, how you want the heater to be connected with the electricity (screws, cable, cap etc. ) 3. Surface quartz tubecolor 4. Connection 5. It is preferred to offer a drawing with all parameter   Product Parameters1. Strong radiation and penetration2. A fast heating response, reaching 100% power after being electrified 3. Save energy, environmental-friendly 4. Good thermostability 5. Easy installation                                                                                       Medium-wave infrared (IR)ModelPower      (W)Voltage      (V)Color temperature            (K)The peak wavelength                  (um)Life (H)Diameter      (mm)Size  (mm)IR-1300120980-13802.5-4.550008-10200-450IR-1325120980-13802.5-4.550008-10200-450IR-1400120-240980-13802.5-4.550008-10200-450IR-1500120-240980-13802.5-4.550008-10200-450IR-1600120-240980-13802.5-4.550008-10250-600IR-1800120-240980-13802.5-4.550008-10250-800IR-11000120-240980-13802.5-4.5500010-12300-1500IR-11200120-240980-13802.5-4.5500010-12350-1500IR-11500120-380980-13802.5-4.5500010-12350-1500IR-11800120-380980-13802.5-4.5500010-12350-1500IR-12000120-380980-13802.5-4.5500010-12350-1500  ApplicationInfrared Quartz Heater is widely used in industrial drawings, such as water paint, water-based oil, water-based resin, water-based ink glass, resin, plastic and papermaking industry. It is also applies in heating devices, sterilization cabinets, paint machines, optical air condition, dry curing and food processing.Company Profile Certifications Packaging & ShippingPackaging 1) plastic bag + carton box 2) wooden box Shipping By express (sample order) or by sea(bulk order) /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
