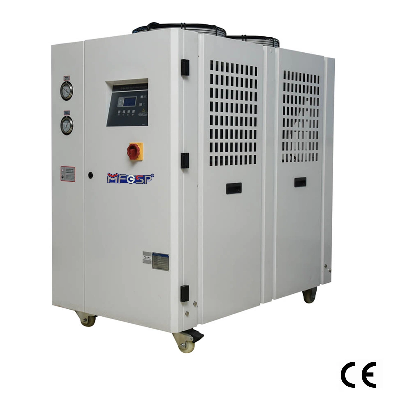

Industrial water cooled chiller air cooling chiller for injection molding machine

Air-cooled Chiller  Performance characteristic:1.The device can cool the water temperature ranging from 7 to 35ºC.2.The low cooling temperature can be customized as per customer's needs.3.The micro computer controls the system running and the temperature can be precise to ±1ºC.4.The overload protection device is used for compressor and pump to prolong the service life.5.The multi protection device(antifreezing protection,high and low pressure protection and flow protection)ensures the system safety.6.The water tank is made from the stainless steel and has a heat insulation layer. Freezing pipelines have the insulation layer to improve refrigerating efficiency.7.Low speed and noise blower fan.8.The blower fan stops along with the compressor,thus effective electric energy saving.    ModelRefrigeration capacityCompressor RefrigerantWater tank capacity     (L)Evaporator TypeFreeze water Pipe (Inch)Freeze water flow rateFan motorSateguardPowerDimensions   LxWxH(mm)Weight  (Kg)KWKcal/hInput power    HPTypeFilling quantity(Kg)L/minM3/hTypeKWSL-2AA551602R221.440Serpentine pipe type1"603.6Axial flow type blower fan0.13Protection of high & low pressure/ Compressor overload /Pump overloadAC3+N+PE 50/60Hz770x580x1115200SL-5AA151290052.5901"905.40.451100x680x1100160SL-10AA30258001051801.5"210110.45x21450x790x1120300SL-12AA40309601261351.5"210111.51640x940x1520500SL-15AA4538700157.52702"270160.65x22200x1000x2100700SL-20AA605160020103502"315160.65x22200x1320x2100750SL-30AA90774003012-Shell type3" 160.65x4Protection of high & low pressure/ Compressor overload/Pump overload/ Antifreezing/ Flow rate2200x1320x21801400SL-40AA1201032004018-3" 230.65x42500x1200x22901600SL-50AA1501290005030-3" 281.1x22200x2000x21802200SL-60AA1801548006035-4" 331.8x43000x2200x21802400Application:This series are applicable for cooling moulds to reduce products molding cycle time; also they are available in the cooling of equiprments in order to maintain a normal temperature. Besides, they are suitable for other industries with the need of cooling.Related products:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
