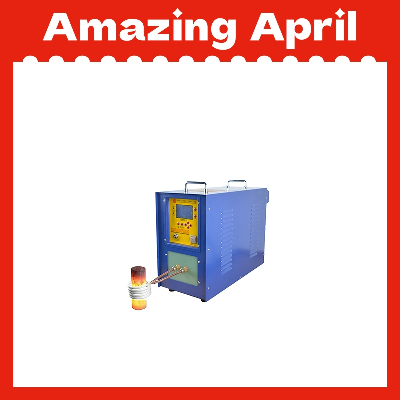

High Frequency Induction Heating Machine

KIH Series High Frequency Induction Heating MachineMain CharacteristicsAdopted European MOSFET, IGBT solid state power module and advanced inverter technology.It has the function of three-stage time setting represented by heating-heat preservation-cooling. Furthermore. The power for heating and heating preservation is available for independent regulation, which can be effective to some extent control the heating curve and the heating temperature.Fully functional, include over-current ,over voltage, water shortage , lack of phase and other fault state protection and display, which can provide higher reliability and durability.Low voltage output does not present safety hazard.The comprehensive full load design is available for 24-hour continuous operation.Main Technical ParametersModel No.KIH-5AKIH-15AKIH-15ABKIH-25AKIH-25ABKIH-40ABKIH-60ABKIH-80ABKIH-100ABKIH-120ABMax Fluctuating Power5KVA15KVA15KVA25KVA25KVA40KVA60KVA80KVA100KVA120KVAFluctuatiog Frequency10-250KHZ30-100KHZ30-100KHZ30-80KHZ30-80KHZ30-80KHZ30-80KHZ30-80KHZ30-80KHZ30-80KHZHeating Current100-500A200-600A200-600A200-1200A200-1200A200-1800A400-3200A400-3800A400-4200A400-4600AWork VoltageSingle phase,220v,50HZ-60HZSingle phase,220v,50HZ-60HZSingle phase,220v,50HZ-60HZ3Phases,380V,50HZ-60HZ3Phases,380V,50HZ-60HZ3Phases,380V,50HZ-60HZ3Phases,380V,50HZ-60HZ3Phases,380V,50HZ-60HZ3Phases,380V,50HZ-60HZ3Phases,380V,50HZ-60HZThe Range of Operating Voltage 180V-245V180V-245V180V-245V342V-430V342V-430V342V-430V342V-430V342V-430V342V-430V342V-430VThe Flow Rate of Cooling Water0.2Mpa,6L/Min0.2Mpa,6L/Min0.2Mpa,6L/Min0.2Mpa,6L/Min0.2Mpa,6L/Min0.2Mpa,7L/Min0.2Mpa,9L/Min0.2Mpa,9L/Min0.2Mpa,12L/Min0.2Mpa,12L/MinWater Temperature Protection Point40°C40°C40°C40°C40°C40°C40°C40°C40°C40°CNet Weight(kg)21Kg26KgMain Part13KgTransformer Part15.5Kg35.5KgMain Part21.5KgTransformer Part15.5KgMain Part33KgTransformer Part37KgMain Part70KgTransformer Part48KgMain Part50KgTransformer Part75KgMain Part70KgTransformer Part75KgMain Part70KgTransformer Part78KgDimension(mmL×mmW×mmH)Integrated180*330*410mmIntegrated460*200*385mmMain Part480*200*385mmTransformer Part315*200*350mmIntegrated480*200*385mmMain Part480*240*400mmTransformer Part315*200*350mmMain Part556*280*470mmTransformer Part360*265*365mmMain Part800*470*560mmTransformer Part500*304*402mmMain Part500*304*402mmTransformer Part800*470*560mmMain Part800*470*560mmTransformer Part800*470*560mmMain Part800*470*560mmTransformer Part800*470*560mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
