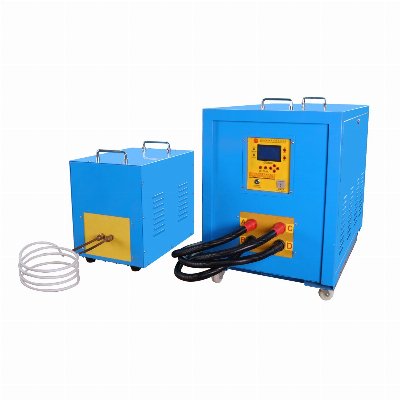

Induction Heating Machine for Metal Blade Soldering Rod Annealing

Induction Heating Machine   Main Specifications:1Adopted European MOSFET, IGBT solid power module and advanced inverter technology. 2Can set the time of three stages: "Heating", "Maintain Temperature", "Cooling", separately. Furthermore, the function of adjusting the power of "Maintain Temperature" independently will be effective to control the heating curve and the heating temperature. 3Include "over-current, over voltage, water shortage, lack of phase and other fault state self-protected and display", also some other necessary functions which will ensure our heater's higher reliability and durability. 4Easily operate and the output voltage is safe for operator. 5Hundred Percent Rated Duty Cycle design, can work 24hours continuously.   Main Characteristics:  Model No.KIH-5AKIH-15A KIH-15ABKIH-25AKIH-25ABKIH-40ABKIH-60ABKIH-80ABKIH-100ABKIH-120ABMax Fluctuating Power5KVA15KVA15KVA25KVA 25KVA40KVA60KVA80KVA100KVA120KVAFluctuating Frequency10-250KHZ 30-100KHZ 30-100KHZ30-80KHZ30-80KHZ30-80KHZ30-80KHZ30-80KHZ30-80KHZ30-80KHZHeating Current100-500A 200-600A200-600A200-1200A 200-1200A200-1800A400-3200A400-3800A400-4200A400-4600AInput Voltage(Single Phase),220V,50HZ-60HZ(Single Phase),220V,50HZ-60HZ(Single Phase),220V,50HZ-60HZ(3-Phase),380V,50HZ-60HZ(3-Phase),380V,50HZ-60HZ(3-Phase),380V,50HZ-60HZ(3-Phase),380V,50HZ-60HZ(3-Phase),380V,50HZ-60HZ(3-Phase),380V,50HZ-60HZ(3-Phase),380V,50HZ-60HZThe Flow Rate of Cooling Water0.2Mpa,6L/Min0.2Mpa,6L/Min 0.2Mpa,6L/Min0.2Mpa,6L/Min0.2Mpa,6L/Min0.2Mpa,7L/Min0.2Mpa,9L/Min0.2Mpa,9L/Min0.2Mpa,12L/Min0.2Mpa,12L/MinWater Temperature Protecting Point40°C 40°C 40°C 40°C 40°C 40°C 40°C 40°C 40°C 40°C Net Weight(Kg)(Integrated):16Kg(Integrated):21KgMain Part:10Kg;Transformer Part:13.5Kg.(Integrated):28.5Kg Main Part:18.5Kg;Transformer Part:13.5Kg.Main Part):30Kg; Transformer Part:35Kg.Main Part:65Kg; Transformer Part:43Kg.Main Part:45Kg; Transformer Part:70Kg.Main Part:65Kg; Transformer Part:70Kg.Main Part:65Kg; Transformer Part:73Kg.Dimension(mm*mm*mm)180*330*410mm;460*200*385mm;Main Part:460*200*385mm;       Transformer Part:315*200*350mm. 480*200*385mm; Main Part: 480*240*400mm;      Transformer Part:315*200*350mm.Main Part: 556*280*470mm;      Transformer Part:360*265*365mm.Main Part:800*470*560mm;      Transformer Part):500*304*402mm. Main Part:500*304*402mm;     Transformer Part):800*470*560mm. Main Part:800*470*560mm;     Transformer Part:800*470*560mm.Main Part:800*470*560mm;     Transformer Part:850*470*560mm.   If you want to know more information or have any questions, please contact us without hesitation!  Sales rep:Mr.Kyle Xu  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
