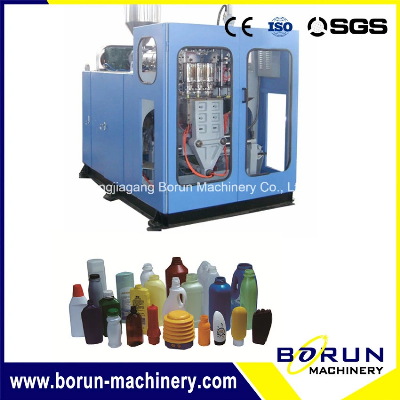

Automatic Plastic Bottle Making Processing Machine for HDPE Bottles

Automatic Plastic Bottle Making Processing Machine for HDPE Bottles  This model adopts fixed mould open-closing system and accumulator die.This model is automatic process with low noise, saving energy, high efficiency, safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts(water box, oil box, air-condition pipe, aoto tail), toys (wheel, hollow autobike, basketball stands, baby castle), tool box, vacuum cleaner pipe, chairs for bus and gymnasium,etc.This model can produce max 10L hollow plastic product. Characteristic:1.Control Unit: Japan Mitsubishi PLC programmable controller and Taiwan HITECH touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.2.Hydraulic Unit: It adopts international famous Japan YUKEN brand hydraulic valve and seal, proportional control.  And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on. 3.Extrusion Unit: Hard gear surface decelerator; famous HFinverter inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating4.Die Head Unit: With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel.5.Clamping Unit: Adopts fixed mould open-closing system,fast and balanced.6..Blow Fitting Unit: Down blowing fitting is equipped.7. Lifter Unit: Four turbine reducer liter, lifting balance, quick, stable. 8. Electrical Components: All of the electrical components are made in Japan and Taiwan.  ModelUnitBM-50SBM-60SBM-80SBM-60DBM-70DMax. Product volumeL2.562526Dry clclePcs/h15001200600700x2600x2Screw diameterMm5060806070Screw L/D ratioL/D24-3024-3025-3024-3024-30Screw drive powerKW11-1515-18.537-4515-18.518.5-30Screw heating capacityKW7.8-8.510.8-1216-2010.8-1212-14.5Output of HDPEKg/h30-3560-68120-14060-6870-85Oil pump drive powerKW5.55.5225.55.5-7.5Clamping forceKN35682003568Platen distancemm138-368178-538400-900138-368178-538CapacityL  4.8  Max. Die diameterMm9015030090150Central distance of bi-dieMm110-130130-200 130-150150-200Max. Die diameter(Bi-die)mm55100 80100Central distance of three-dieMm80-110100-120 80-110110-140Max. Die diameter(three-die)Mm4060 4070Central distance of four-dieMm60-8560-85 60-8570-100Max. Die diameter(four-die)Mm2530 2545Die heat capacityKW  16  The average consumptionKW/H12.516.53216.518.5Blowing pressureMPa0.60.60.80.60.6Air volumeM³/min0.40.50.80.40.4Cooling water pressureMPa0.2-0.30.2-0.30.30.30.3Water consumptionL/MIN3050806070DimensionL*W*H2.8*1.8*2.3m3.0*1.9*2.5m4.3*2.2*3.6m3.0*2.15*2.6m3.5*2.1*2.6mWeightTon34.512.56.57.8hydraulic partsCOMPONENTSUPPLIERSOIL PUMP                 TAIWAN HITECH           HYDRAULIC VALVE        TAIWAN NORTHMAN          electronic partsCOMPONENTSUPPLIERSMICROCOMPUTER CONTROL SYSTEMJAPAN MITSUBISHI PLC     TOUCH SCREEN    TAIWAN HITECH TOUCH SCREEN(COLORFUL, BILINGUAL)      TEMPERATURE MODULE   TAIWAN 7118R        PROXIMITY SWITCH       TAIWAN  RIKO                  CONTACTOR             FRANCE SCHNEIDER          MOTOR                    SIEMENS BEIDE THREE PHASE MOTOR POWER RESOURCE        TAIWAN MEAN WELL            TANSDUCER              TAIWAN DELTA                  air control systemCOMPONENTSUPPLIERSAIR VALVE                TAIWAN  AIRTAC                /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
