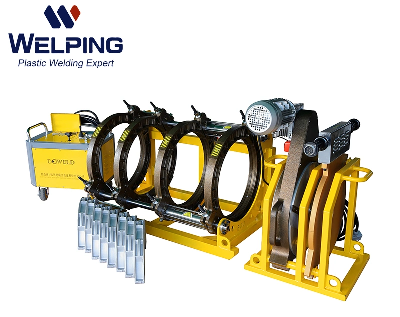

Support Customized 500mm Butt Welder Hydraulic Butt Fusion Welding Machine

  ModelWP500ASuitable materialsPE,PP,PVDFRange250-500mmPower supply380VFrequency50HZ,60HZ is optionalTotal power16.2KW   Heating plate6.5KW   Planing tool1.5KW   Hydraulic station1.1KWMax.Pressure16MpaHydraulic oilL-HM46Max.Temperature of heating plate270ºCTemp.Deviation in Surface±7ºCBasic FramePlywood1330*790*860mmHydraulic UnitPlywood680*530*730mmPlaning tool heating platePlywood900*610*1070Total WeightG.W406KGS  SNModelPipe rangePower supplyRemarks1WP110A40-50-63-75-90-110 (mm)220V, 50Hz 2WP160A63-75-90-110-125-140-160 (mm)220V, 50Hz 3WP200A63-75-90-110-125-140-160-180-200 (mm)220V, 50Hz 4WP250A90-110-125-140-160-180-200-225-250 (mm)220V, 50Hz 5WP315A110-125-140-160-180-200-225-250-280-315 (mm)220V, 50Hz 6WP355A160-180-200-225-250-280-315-355 (mm)220V/380V, 50Hz 7WP400A160-180-200-225-250-280-315-355-400 (mm)380V, 50Hz 8WP450A200-225-250-280-315-355-400-450 (mm)380V, 50Hz 9WP500A250-280-315-355-400-450-500 (mm)380V, 50Hz 10WP630A315-355-400-450-500-560-630 (mm)380V, 50Hz 11WP800A630-710-800 (mm)380V, 50Hz 12WP1000A800-900-1000 (mm)380V, 50Hz 13WP1200A1000-1100-1200(mm)380V, 50Hz 14WP1600A1200-1400-1600 (mm)380V, 50Hzcustomized15WP2000A1600-1800-2000(mm)380V, 50Hzcustomized16WP2500A2200-2500 (mm)380V, 50Hzcustomized17WP3000A3000 (mm)380V, 50Hzcustomized  Basic Frame:  Featured by*Italy DNP quick coupler*Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel*Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel*Steel plate cutting clamp with sandblasting &spraying treatment *Base made of Q235 steel with spraying treatmentPlaning ToolFeatured by*HSS blade with double edge*Casting aluminum trimmer plate, durable and anti-corrosion*Casting aluminum frame of motor with good heat dissipation performance*Motor with pure copper wiring  Heating PlateFeatured by*Bakelite handle with high insulating property and           thermal insulation*Thermocouple temperature sensor*Heating element*Aviation plug  Hydraulic stationFeatured by*Fully enclosed housing with vents can prevent dust and dirt from entering*380V asynchronous motor*CHNT  electricity leadkage protection switch*Data logger(optional)500V/100A  electric meter*Ø100mm presure meter*Relief  valve,  regulating valve, maintaining valve  1. PAYMENTWe accept 30% TT deposit and 70% balance payment against photo before delivery or 100% TT in advance.2. LEAD TIMEStandard items and light-OEM items, WELPING can finish in around 10-15 days. 3. WARRANTY18 Months from delivery we take full responsebilityfor parts with quallity problems and provide them for free requirements4. CUSTOMIZED DESIGNOur experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.5. ABOUT AGENCY BUSSINESSWelcome customers with sincerity and influential to discuss cooperation matters with us/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
