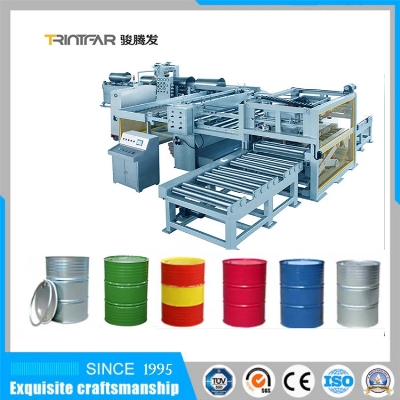

200L Steel Drums Making Machine Steel Barrels Production Line//

Features:- Fully Automatic welder, featured in automatic coil feeding, rolling, seam welding, and transferring.- Three-phase Variable-frequency control, up to 50% energy saving compared to two-phase control.- Digital constant current weld parameter control-easy & simple to use- Mercury-free weld heads- All copper secondary for high efficiency- Forged copper shafts for long life- Easy to change forged copper electrodes- High-performance 250kva fully encapsulated transformer- Automatic electrode trimming- Fully-internal cooling system, for a clean working environmentTechnical Solution.1. 7 layers of circle rolling technology" (core tech of our company) has been adopted in Middle Equipment.2. High-pressure painting without air, fuel heating has been adopted in Post Production Equipment.Automatic production line, 11 workers are required only.3. Complex Pressing technics have been adopted in Front Equipment, which saves 3~4% steel materials for each 55 Gallon steel drum.A. Cut the steel plate size: width 600-1320mm; thickness 0.6-1.4mm;B. Production capacity: cutting 15 time/minute; Max. Cutting speed 50-60m/minute;C. Total weight of the equipment: about 55 ton;D. Total power of the equipment: 48KW;E. Production level: cutting precision Length: tolerance 0.5mm; diagonal: tolerance 1mma. Coil cart: driven by 3 in 1 motor, hydraulic up and down; b. Uncoil unite: no power turning, hydraulic driving, coil inner diameter Ф508-Ф610mm; Maximum load-bearing 15 tons; c. 7 roller leveler machine: 7 rollers leveling, motor speed adjustable by change frequency; d. Measurement facility: the length and precision is controlled by A.C. service motor made in Japan; e. Transporter: rollers conveyer. f. Cover Pressing Machine (160Ton press) : to forming the cover and bottom by 2-160 Ton punch press, the raw material is coiling steel plate, loading and unloading is Auto operating. Unit power is 15KW. g. Double Locking Pressing Machine: to locking the small cover by 63Ton punch press. h. Pre curling & spray sealing glue machine: Before seaming, the drum top and bottom need pre-curl, at same time must spray glue to ensure the seaming quality. i. Cutter: 3×2000mm ;PLC control. producing PET plastic containers and bottles in all shapes.Support various color LOGO customization fast production efficiency and automated support make production very simpleSpecificationitemvalueConditionNewMachine TypeWelding ManipulatorApplicable IndustriesManufacturing Plant, Construction works , Energy & Mining, OtherAfter Warranty ServiceVideo technical support, Online support, Spare parts, Field maintenance and repair serviceLocal Service LocationEgypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, KazakhstanShowroom LocationEgypt, Turkey, United Kingdom, United States, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, AustraliaVideo outgoing-inspectionProvidedMachinery Test ReportProvidedMarketing TypeNew Product 2020Warranty of core components1 YearCore ComponentsPLC, Engine, Bearing, Gearbox, Pressure vessel, GearPlace of OriginChina   ShanghaiBrand NameTRINTFARCertificationCEWarranty1 Year   Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online supportKey Selling PointsFamous brand PLCWeight (KG)5000kgVoltage380vCurrent10kwRated CapacityotherRated Duty CycleotherDimensions4380*1927*2140UsageAutomatic WeldingSpeed2~10pcs/minAutomatic Grade:AutomaticPackaging Type:Cartons, Barrel, Stand-up Pouch, Bags, caseUsage:find the welding linePackaging Material:plastic, wood   FAQ1. who are we?We are based in Shanghai, China, start from 2018,sell to Domestic Market(65.00%),Southeast Asia(15.00%),Eastern Europe(10.00%),South Asia(10.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Welding Machine4. why should you buy from us not from other suppliers?With a history of more than twenty years, our company is a mature enterprise integrating scientific research, development, manufacturing and sales and specialize in different resistance welders and automatic welding equipments5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDU,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,P
