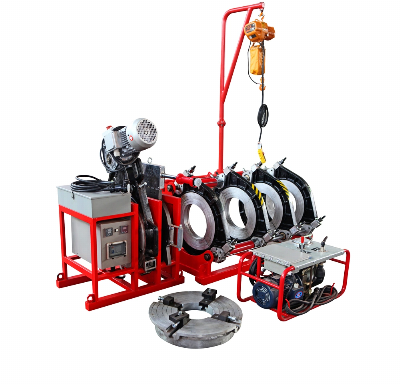

Plastic Pipe Welder/Plastic Pipe Welding Machine for 450mm Pipe

Plastic Pipe Welding Machine1. Available for pipes with max dia.: 450 mm2. Hydraulic type welding machine3. Available for PE/PP/PVDF/PVC and other thermoplastic pipes4. Prompt goods to deliveryThis machine is designed for butt welding of pipe-to-pipe and pipe-to-fitting of PE PP PVDF and other thermo-plastic materials. It can work in trenches, worksite and workshop, and it is an ideal joining equipment for water and gas supply pipelines.1. Detaching device is especially designed to break off melted pipes end from the heating plate on the expiry of heating up.2. Safety switch enables the trimmer to start only when it is located in the operation position.3. A mechanical lock excludes the disengagement of the trimmer during the operation4. Removable heating plate with DuPont high quality non-stick PTFE coating, and also equipped with digital temperature controller5. Low temperature difference in heating plate surface, within 7 degree6. Incorporated with large easy to read scale pressure gauge, accumulator, pressure regulation valve, swing check valve, high pressure hoses, and quick couplers7. Imported oil seal & quick couplers8. Fine operation panel with clearly strong meshing printing characters.9. Warranty period: 12 monthsSPECIFICATION:ModelTSD500Welding range250,280,315,355,400,450,500mmPower supply380V±10%, 50HzOverall cylinder section23.1CM2Max. Pressure6MPaTotal power12.2KWHeating plate power9.2KWTrimmer motor power1.5KWHydraulic unit motor power1.5KWHeating plate Max. Temp.270ºCHeating plate temperature difference±7ºCManufacture standardsISO12176-1Overall Weight (kg)622KG  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
