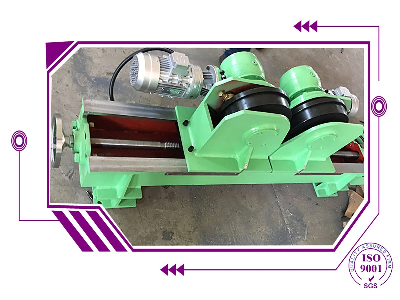

Welding Rotator Apply in Turning Rolls and Vessel Roller

     Welding rotator is a kind of our advanced welding equipment , which is be researched and manufactured absorbing domestic and international advanced equipment .it is mainly used for pipe, containers, boilers, pressure vessels, oil tank and other cylinder's assembling, burnishing and welding, can use together with column and boom and SAW system to realize inside and outside girth and longitudinal welding. Its series includes self aligning rotators (SAR), and conventional rotators (WR). Other customize have trolley tilting anti drift rotator;Accordingly this device has advantages of compact structure, small cubage, beautiful shape, lightweight, convenient operating and so on. The machine can assort all kinds of auto welding or manual welding, improving welding quality, lessening welding labor and improve productivity.    We can provide solutions to unique welding rotator according to the customer's requirement   model(HGK##)max load capacity(tons)vessel diameterΦd-ΦDmmdiameter and width of wheelwheel distance  adjust waymotor power, kwwheel speedm/minOverall Dim.(L*W*H)G.W  (tons)RubberD1*W3(mm)metal D2*W4(mm)PowerL1*W1*HIdlerL2*W2*HWR22250-1800200*802-190*16adjust by manual lead screw or bolt separately2*0.180.1-1VFD1260*500*4101260*350*4100.45WR33250-1800200*802-190*162*0.251260*500*4101260*350*4100.50WR55250-2300250*1002-240*202*0.372000*500*4801600*380*4800.90WR1010320-2800300*1202-290*252*0.552440*610*5502320*450*5501.6WR2020500-3500350*1202-340*302*1.13100*675*6602500*500*6602.0WR4040600-4200400*1202-390*402*1.53300*700*7202600*600*7202.5WR6060700-5000450*1202-440*502*2.23800*870*8303000*650*8303.1WR8080700-5500500*1202-490*602*34380*900*8703400*700*8903.4WR100100700-6000500*1202-490*802*34380*970*9803800*760*9805.8WR1501501000-6000/500*260adjust by bolt separately2*44500*1000*10604050*800*10607.5WR2502501000-7500/660*2602*5.54900*1060*11004380*920*110011.0WR4004001000-7500/700*3002*5.55900*1140*11805500*920*118017.5WR5005001000-8000/800*3502*7.56200*1280*13505700*1000*135022.3WR6006001500-8500/850*3602*7.56900*1300*16006000*1200*160027.5WR8008001500-9000/900*3802*117100*1400*16006500*1260*160030.0WR100010001500-10000/1000*3502*157500*1600*17007000*1320*170040.0WR120012001500-12000/1000*4502*15 8380*1600*18007200*1320*180051.0Notes:a) Variable rotation speed from 100 to 1000 mm/min: includedb) Wheels padded with heavy duty rubber: Included on models SAR 100 and smallerc) Remote control box with 6-12 m span: included, and allows adjustment of rotating speed -digital display in mm/min-,forward and reverse rotation, and stopd) Auto adjusted tilt angle of roller bed as per diameter of work piecee) Shot blasted frame at SA 2 ½: includedf) Variable Frequency Driver (VFD) made by Teco or other brandg) Custom built welding rotators: availableh) CE mark only under customer requesti) The information contained in this brochure is intended to be accurate. However the manufacturer retain the rights to make changes in design which may not be includeStandard package includes  One power unit with control box  One idler unit  Operation manual  One year warrantyOptional:+Turning rolls mounted over manual or motorized bogies  + Synchronized operation of multi number of power rotators+ Pu roller instead of rubber roller/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
