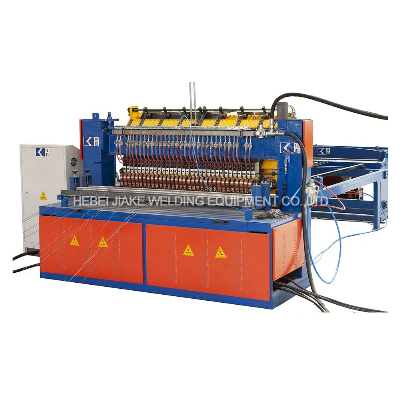

Full Automatic Poultry Chicken Cage Mesh Welding Machine Dp-Aw-1200h

Chicken cage welding machine1. This is our new developed chicken cage welding machine.2. Pneumatic welding, controlled by SMC (Japan) air cylinders3. Panasonic servo motor for pulling mesh, cross wire space can be adjusted by PLC4. Cast water-cooling transformers5. The longitude wires are fed from wire coils automatically. The cross wires should be pre-straightened&pre-cut, then fed by cross wire feeder automaticallyTechnical ParametersModelDP-AW-1200HMesh widthMax.1200mmWire diameter2-3.5mmWelding electrodes25pcsLongitude wire spaceMostly 50-200mmCross wire spaceMin.20mm or smallerWelding transformer125kva*3pcsWelding speedMax.140 times/minLongitude wire feedingFrom wire coilsCross wire feedingPre-straightened&pre-cutSpace needed15*5mWeight3600kgWelding PartMesh Pulling systemElectric control cabinetPanasonic (Japan) PLCWeinview (Taiwan) touch screenSchneider (France) low-voltage apparatusABB (Switzerland Sweden) switchSchneider (France) air switchOmron (Japan) power supplyPanasonic (Japan) servo drivePhoenix (Germany) wire terminalInfineon (Germany) SCRBusiness Card  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
