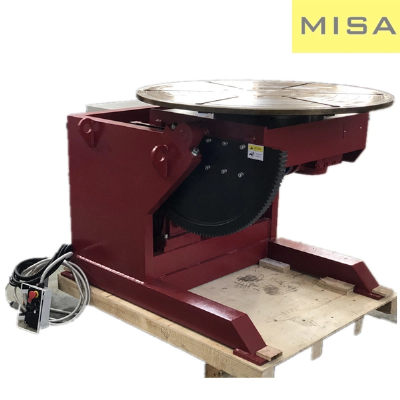

Rotary Welding Positioner for Pipe Elbow Flange Tilting and Rotation

Rotary Positioner for Pipe Elbow Flange Tilting and Rotation Various applications of pipe welding positioners are available, ranging from spooling pipes to positioning large cumbersome components like chassis components or structural steel. It is very beneficial to use welding positioners when welding pipe, shafts, wheels, elbows and other fittings.Positioning valves using pipe turning positioners is a common method for rotating or repositioning workpieces with a large offset load, as is the case with welding turntables.The pipe welding positioners and welding rotating tables manufactured by MISA Welding Automation are suitable for a wide variety of pipe handling applications.  1. The load capacity is from 2 tons to 500 tons2. Can be tilted and rotated3. Enhance safety4. Allow both skilled and entry-level welders to make high-quality rotary welds5. Improve employee morale6. Use semi-automatic functioning to limit worker fatigue and increase production speeds7. Can be matched with the manipulator to realize automatic weldingWHAT TO KNOW ABOUT WELDING POSITIONERS           Fixed Type Welding Positioner              Hydraulic Type Welding Positioner          Elevating Type Welding PositionerWhy Choose MISA Welding Positioners:√ Standard match with CUL and CE√ Professional design team√ Motor power supply is equipped with safety protection√ Perfect after-sales√ 13 months warranty.  Welding Positioners - The Comprehensive FAQ Guide  Welding positioners made by MISA are all powered variable-speed machines that can rotate in either direction and can be controlled remotely by various switch options.  What are Welding Positioners?To work at the correct angle and a consistent surface, welders use welding positioners to hold a workpiece and rotate it. With its fast rotation speed, it can support significant weight even when bearing a lot of weight.Welding positioners are designed to ensure that the workpiece is always in the most advantageous welding position.                                                        Example of what a welding positioner looks likeWelding positioner improves the welding outputBy eliminating waste in multiple aspects of their work, positioners improve productivity. The purpose of welding positioners is to ensure as much arc time as possible.In order to move cranes, chains, grippers and other types of rigging equipment effectively, welders often have to wait for the appropriate positioning of the workpiece, something that may have to be done more than once for one weldment.Positioners also make it possible for the welder to manipulate the part more quickly.Large parts can be positioned by one operator, eliminating the need for multiple people to reposition the part.As a result, there is a labor savings and employees are freed up for other tasks.                                                             Application display of welding manipulatorWelding positioner improves welding qualityWelding positioners produce consistently high-quality welds, which is one of the major benefits. It is difficult to produce quality welds when the part moves during the welding process.If the material is securely fastened, sufficient penetration of the weld will be possible, as well as the ability to complete all welds without interruption.In terms of weld quality, welding positioners solve many problems since they rotate the workpiece at a controlled rate and speed for a continuous, penetrating weld.Advantages of a welding positioner* Tilt and rotate the work piece to make the welding level and ship-shaped, such as the best position for welding.* High-quality DC motor, smooth operation of the worktable, stepless adjustment of welding speed, large adjustment range, and high adjustment accuracy.* It can be fixed on a workbench or a special tool for manual welding, or it can be used with a welding manipulator to realize automatic welding. It can also be used for cutting, grinding, assembling, testing and other processes.* The clamp and the workbench choose a simple mechanical connection method with high positioning accuracy; it is especially suitable for welding flanges, steel pipes and other joints.* The hand control box or foot switch is used to control the desktop rotation, which is easy to control the rotation; easy to use and simple to operate.5 things welders need to know about weld positionersWhen selecting, operating, and maintaining a positioner, welders should consider these five suggestions, regardless of the size of the weldment.- Confirm the center of gravity (COG)It is important not only to take the weight and size of the weldment into account when selecting a positioning device, but also to consider how far the weldment's center of gravity is from the device. The center of gravity refers to the point at which the weldment balances on all axes equally. The point at which the weldment equalizes the pressure on each axis is the COG. The positioner is torqued more when the distance from the device i
