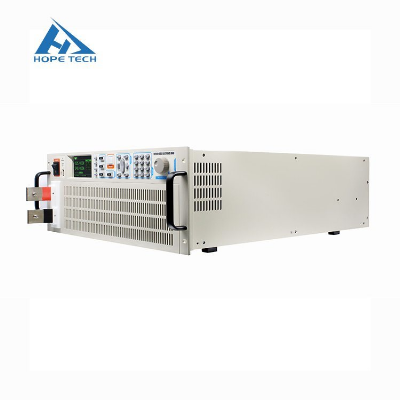

HP8906b 500V/120A/6000W High Stable Programmable DC Electronic Load

Product Descriptionhttps://ckt2017.en.made-in-china.com/product-list-1.htmlBrief IntroductionOVERVIEWHP89XX Series DC Electronic Load is high precision programmable DC electronic load controlled by high performance microprocessor. Adopt 3.5-inch TFT true color LCD display, Chinese and English menu.Modular design, high energy density.Self-diagnostic function.Built-in rich interface, RS232, LAN, USB and analog interfaces for remote control and data acquisition and analysis.TEST FUNCTION HP89XX series electronic load has four test modes: CC, CV, CR, and CW, and has 10 function modes: dynamic testfunction; overcurrent protection test mode; load effect mode; battery test mode; dynamic scan mode; timing testmode; overvoltage protection test mode; LIST mode; AUTO mode. At the same time, it has comprehensive protection functions, overheat protection, overcurrent protection, over power protection, overvoltage protection ring and road oscillation protection.FEATURES500kHz high-speed voltage and current sampling rateHigh precision voltage and current measurementEquipped with remote 4-wire compensationCurrent ripple and voltage ripple display in real timeFast loop response speed and current slew rateMultiple protection function designModular design for easy installation and maintenancePower module self-test, fast speed locate faultSPECIFICATION         ModelHP8906HP8906BHP8906CInput voltage 15V150V50V500V15V150VInput current24A240A12A120A50A500AInput power6000WMinimum operating voltage1.5V@240A2.5V@120A1.5V@500AMinimum full-range current climb time25us25us25usCV ModeRange15V150V50V500V15V150VResolution0.2mV2mV0.7mV7mV0.2mV2mV             Accuracy±(0.025%+0.05%FS)CC ModeRange24A240A12A120A50A500AResolution0.3mA3mA0.1mA1mA0.7mA7mA             Accuracy±(0.1%+0.1%FS)CR ModeRange0.02Ω~6kΩ0.08Ω~41kΩ0.005Ω~3kΩResolution16Bits             Accuracy±0.1%CW ModeRange6000WResolution16Bits             Accuracy±(0.2%+0.2%FS)Dynamic Mode Ta&Tb10us~50sMinimum resolution10usMaximum rise/fall slope3A/us3A/us3A/usVoltage Readback ValueRange15V150V50V500V15V150VResolution0.1mV1mV0.3mV3mV0.1mV1mV             Accuracy±(0.025%+0.025%FS)Current Readback ValueRange24A240A12A120A50A500AResolution0.1mA1mA0.09mA0.9mA0.3mA3mA             Accuracy±(0.05%+0.05%FS)Ripple Readback ValueRange(U/I)150V/240A500V/120A150V/500ABandwidth 10Hz~250kHzRange(U/I)±1%Protection Range Overpower protection bandwidth6300W6300W6300WOvercurrent protection252A126A525AOvervoltage protection158V525V158VOver temperature protection≒85ºCDimensions Size(L*W*H)624mm*483mm*176mmNet Weight(Kg)45 Kg  Detailed Photos Packaging & Shippinghttps://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.htmlCompany Profilehttps://ckt2017.en.made-in-china.com/contact-info.htmlChuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc. FAQ:Q. How is your company's product after-sales service system? A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service. Q: Can you customize it? A: Yes, we accept customization according to customer's specific requirements. Q. How long is your lead time? If I want to customize instruments, how long will it take? A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days. Q. What payment method do you accept? A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on. Q. What package do you use for your products? What shipping method do you use? A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements. For more questions, please feel free to send inquiries to us.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
