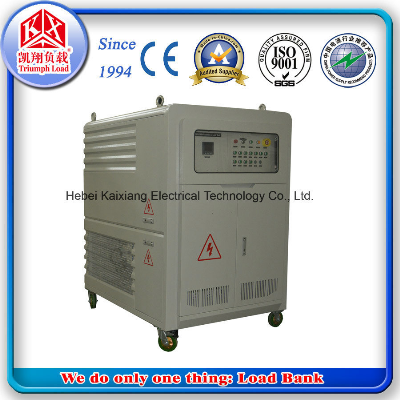

400V 500kw Load Bank

Product Description500kW Load Bank Main Functions:1. Users can set adjustable load power within rated power.2. Current, voltage, frequency, power factor, and active power, reactive power, and apparent power can be displayed.3. With software programmable control, graphs of current, voltage, frequency, power factor, power can be displayed, saved and printed.Control mode: manual control (control panel) with remote controller box or PC control.Display meters: multi-function digital meter or generator tester.Protection: Over load protection, over heat protection, short circuit protection, Emergency stops switch, etcTechnical ParameterTechnical ParameterRating voltage/frequency400V power 500KW; 3 phase 4 wire, 50HzMax Load Power500kWLoad ResolutionAs per requestPower Factor1Load Tolerance  (each step)±5%Load Tolerance (overall)±3%Display MeterMultiple function meter /Generator testerFan Control PowerExternal power 380VAC 3 phase 4 wire 50HzWire ConnectionLoad bank input--busbar (star coupling "Y")Control power input--busbarCommunication InterfaceRS232, RS485InsulationFCoolingForced air, horizontal air intake and upwards exhaust coolingTransportationWith lifting eyes and wheel castorsColorAs customer's requirements or as our designDimensionsAbout 1550*1250*1680mm L×W×HWeightAbout 690kgsOperating Environment ParameterAmbient Temperature-10°C~+50°CRelative Humidity≤95%Atmospheric Pressure86~106kPaBrands of Main ComponentsContactorSchneiderPLCSiemensAlloy ResistorKaixiang Product ScopeWhy Choosing Us?1. Kaixiang is the largest and earliest load bank manufacturer in China, we have 24 years experience. Our factory has 25,000 square meters.2. The sole company that draw up the enterprise standard "Dry-type load bank" in China.3. As the sole load bank supplier for China nuclear field and the largest load bank supplier for marine, military and aviation industry.4. China Power Industry Top Ten Famous Products.5. China Power Supply Recommend Products.6. Certified by SGS, CE, ISO9001:2008.7. Public company, as listed company in 2015.Contact Us /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
