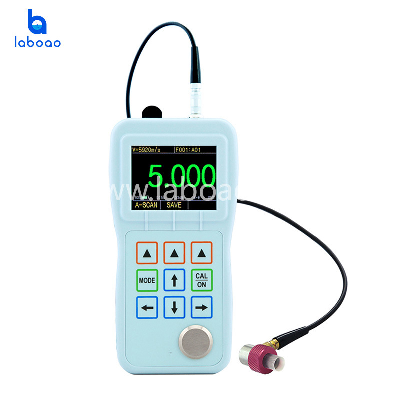

High Precision Ultrasonic Thickness Testing Gauge Is Used to Detect Object Thickness

High Precision Ultrasonic Thickness Testing Gauge Is Used To Detect Object ThicknessLP-5 Series High Precision Ultrasonic Thickness Gauge Uses Multiple Echoes to Improve Precision, with Resolution up to 0.001mm and Measurement Lower Limit as Low as 0.2 mm. In addition, it provides A and B scanning functions. Through echo display, users can be helped to better control measurement, so that the thickness measurement range is wider, the measurement value is more accurate, and errors related to materials in measurement can be avoided.Feature:1. Ultrasonic high precision, 0.001mm resolution 2. Designed for thin parts, measuring lower limit is 0.2 mm.3. 2.4 inch QVGA(320*240 dot matrix) color OLED screen4. Live Color A-Scan and Time-based B-Scan5. Unique Multiple Verification Mode6. Gain, Blanking and Gate can be adjusted according to the measured waveform.7. Has the function of penetrating the coating.8. Store 100,000 thickness values and 1000 waveforms. (LP-5DL.)Specification:ModelLP-5LP-5DLMeasuring range0.2-27 mmPenetration coating functionYESDisplay2.4QVGA (320×240) color OLED   screen with contrast ratio of 10000:1Working principleUltrasonic Measurement Principle Using Single Crystal   Delay ProbeMeasurement mode and measurement range (material is   steel):I-EPulse-echo method, measuring range 1.5mm-27mmE-EEcho-echo method, measuring range 0.2 mm-13.5 mm.ME-EMultiple wave calibration method, measuring range   0.2mm-9mm-9 mm.AUTOAutomatic mode measurement range 0.25mm-27mmDisplay modeA-SCANDisplay complete RF echo or rectified half-wave waveformB-SCANTime-based B-Scan, Show workpiece cross sectionStorageNOstore 400 files, 100,000   thickness values and 1000 A and B scanning waveforms.Large thickness readingGeneral display view of   thickness valuesDifference/Reduction RateDisplays the difference between   the actual thickness and the preset thickness and the thinning percentageMeasurement resolution0.001 or 0.01 or 0.1mm (0.0001   or 0.001 or 0.01 in)UnitMillimeters or inchesGainReal-time adjustableThe measurement update rate4HZ, 8HZ and 16HZ per second are   optional.The sound speed range of the   material500-9999m/s,0.0179-0.3937in/usAlarm functionWhen the measured value is   greater than the preset upper limit or lower limit, dynamically changing the   thickness reading color alarmLanguageChinese, English, Japanese,   German and French are availablePower supplytwo AA batteriesOperating timeTwo AA batteries for more than   35 hoursAutomatically shut downOptional 5, 10, 20 minutes after   no operation automatically shut down, or only manually shut downworking temperature-10ºC ~+50ºC, with special   requirements up to -20ºCSize153*76*37mmWeight280g (including battery)Standard configurationThickness gauge host, standard   probe, instrument box, two alkaline batteries, coupling agent, operation manual,   certificate of approval, packing list, 1 data communication line and 1   software CDOptional accessoriesRubber jacket; Step test block   for calibration; Coupling agent  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
