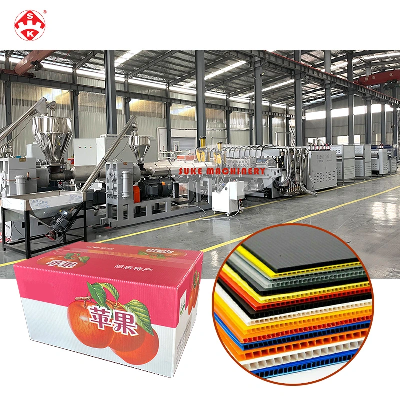

PP Hollow Sheet Extruder Machine/Plastic PP Sheet Making Machine

PP Hollow Sheet Machine Packing Carton Grid Corrugated Sheet Single Screw Extruder  Multi Layer Flated Board Extrusion Production Line The production line can use PP raw materials and adopt a single-screw extruder to produce single or multilayer hollow sheets. The quality and specifications of the produced plates meet the requirements of the demanding company.    Machine List:No.Machine Qty.1Screw loader1set2ASM110/35 single screw extruder1set3Screen changer1set4Metering pump1set5Extrusion mould1set6Calibration mould1set7Mould shelf1set8Vacuum calibration table1set (3 groups)9Mold temperature controller1set10Vacuum system1set11Chiller1set12Haul-off unit with 6 rollers (Forward)1set13Trimming device1set14Haul-off unit with 2 rollers (Backward)1set15Cutter1set16Belt conveyor1set17Electrical control system1setWork Condition (provide by customer)Temperature & Humidity≤40ºC, ≤95%Power supply3-phase, 380 V, 50 Hz(or customized)Wire/cables:Wires/cables from power supply to control cabinet of this production line;Cooling Water hose/pipeWater supply to machines and poolsLubrication oil:Sinopec, Exxon mobileEnergy ConsumptionInstallation powerTotal 250Kw, Actual consumption about 130Kw Cooling Water5M3 / h; 20ºCCompressed air1M3 / h, 0.5-0.7MpaManpower3 Persons/shift(24 hours need 2-3 shifts)  Advantages of PP Hollow Corrugated Shee : 1. Light weight, high strength, high hardness, impact resistance, wear resistance.2. Surface is smooth, bright and clean; Concreting and forming effect is good for pp hollow sheet making machine.3. No absorption of moisture, no deformation, no mildew; Long-term immersion stratification in the water, no bubbles, sheet size stability, especially suitable for underground and damp environment.4. Good toughness. pp hollow sheet making machine could be used as cambered special-shaped formwork.5. Acid and alkali resistance, corrosion resistance; pp hollow sheet making machine is very suitable for the engineering application in coastal areas, mine, as well as seawall. pp hollow sheet making machine needs not do any preservative treatment both in using and storing the formwork, which do not pollute the concrete surface.6. The reusable time for pp hollow sheet making machine can reach more than 60 times, long service life.7. Waste products can be recycled and reprocessed, making full use of waste materials. This property can greatly reduce the project cost compared with wooden formwork and bamboo formwork.8. Environmental protection and energy saving, no pollution. No any poisonous or harmful gas.9. Demould easily. No need brushing release agent, only tapping, the plywood formwork price will fall off. Shorten working hours and speed up the construction schedule efficiently.10. Easy to process. Sawing, drilling and nailing are all available. pp hollow sheet making machine can be combined vertically and horizontally optionally.11. Easy to remove. Removing is convenient, quick and safe, and the supporting is also easy to operate, advantageous to the organization construction, effectively improving the construction schedule.  Why Choose Us? Strong StrenthFounded in 2002.20000 square meters factoryOver 50 workers Rich ExperienceOver 500 lines exportedSell to over 20 countriesCover all of extrusion products  Professional SupportMachine & Specification MakingDetails infos classficationPicture & videos sharingFormula & operation support Good After Service Full set of drawings Full set of operation manualFree running test Free online technical support       /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
