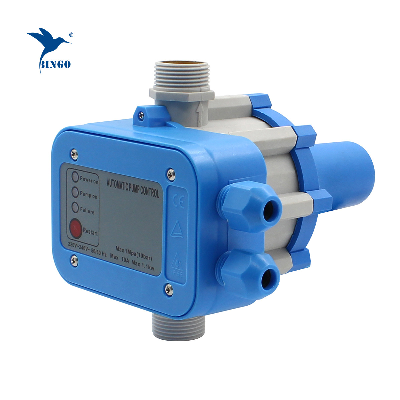

Intelligent Display Water Pump Automatic Pressure Switch Controller

Product DescriptionWater Pump Pressure SwitchAutomatic pump controller Water pump electronic pressure controller can replace the complicated installations of automatic water pump. It has the features of stable performance, low maintenance and long lifespan.1). Electric switch used in water systems.2). It starts the electric pump automatically after a pressure decrease(taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump(taps closed).3). Starting pressure is adjustable during installation, adjustment range: 1.0bar-3.5bar.4). Joint screw: G1"male.5). Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve, etc.6). Stop the water pump in the case of water shortage.7). Automatic reset after a stop caused by dry running, standard time-interval 60min/1 test.8). Customized setting. Product ParametersModelPS-WE10MediumwaterStarting pressure1.0bar, 1.2bar, 1.5bar or 2.2barMax.pressure10barPower1.1KW(220V-240V),0.75KW(110V-120V)Electric rating10A; 110V-120V or 220V-240V, 50/60HztemperatureMax.60ºCConnectionG1"Protection gradeIP65Size228mm*169mm*167mmDetailed Photos Panel.CE, TUV Certificate, IP65.  Installation interface.Threaded interface,easy to install,firm and watertight. Brand new engineering plastics.ROHS certificateDifferent color available.  Wire connection port.With rubber sleeve,sealed interface,waterproof design. Installation InstructionsVertical installation, arrows indicate the flow of water.Other models/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
