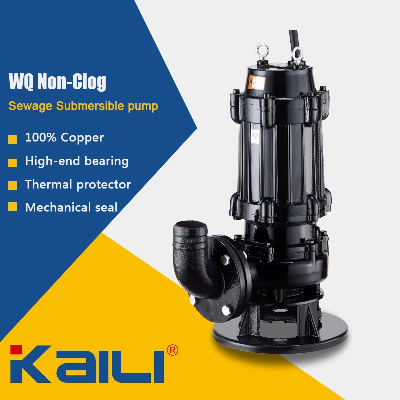

WQ Non-Clog Submersible Sewage Pump (CE Approved WQ)

WQ non-clog submersible sewage pumpProduct introduction  WQ non-clog submersible sewage pump/drainage pump (hereinafter called "pump") is integrative motor and pump. Which is manufactured based on absorbing domestic and foreign advanced technology and advantages. Impellor, designed with hydraulic model and made by precision casting, has the advantages of energy-saving, anti-winding and non-clogging, etc. At the same time, this sewage pump has a unique effect in the carriage of solid particles and long fibers garbage. Single or dual impellor structure ensures the sewage pump has the higher efficiency when it has bigger flow. So this kind of sewage pump is an ideal drainage pumps for industries and cities.Main Application1 Living waste water discharging2 Sewage systems of municipal works3 Sewage systems in factory and mine corporation4 Other transportation of non-corrosive and diluted medium5 Temporary floodwater discharging 6 Waste water discharging of public facility7 Various watered is charging systemOperating Conditions1. Capacity scope: 2~1500 m³/h;2. System pressure: ≤0.6mpa;3. Medium consistency: ≤1.3×10³kg/m³;4. Motor insulation class: IP68;5. Rotation: clockwise rotation viewed from motor;6. Rated Speed: 970-2900r/min;7. Head scope: 3-45;8. Medium temperature: -15°C~+60°C;9. Medium PH scope: 5-9;10. Motor insulation class: E Grade;Features of Kaili Sewage Pump1. 100% copperwire2. Chrome-plated pump rotor (more resistant to wear and corrode)3. Thermal protector4. High-end bearing and mechanical seal5. Flange or Elbow for the water outlet6. Available for 60HZMaterialStructure of pumpMaterialCan be selectedPump bodyCast-IronStainless steelImpellorCast-Iron Pump shaft45 # SteelStainless steelCable Arbitrary length   Main SpecificationAppellationModelFlowHead (m)Power(kW)HPVoltage (V)Velocity (r/min)Pipe size(m³/h)(L/min)(mm)(inch)WQNon-CloggingSewageSubmersible Pump                                                         WQ(D)10-10-0.7510167100.751220/380       2860/3000       502WQ(D)7-15-1.17117151.11.5401.5WQ(D)15-10-1.115250101.11.5502WQ(D)6-18-1.56100181.52401.5WQ(D)15-15-1.515250151.52502WQ(D)20-10-1.520333101.52652.5WQ(D)25-7-1.52541771.52753WQ(D)16-18-2.216267182.23502WQ25-10-2.225417102.23380                                                 3000              652.5WQ35-7-2.23558372.23753WQ15-30-3152503034502WQ25-15-3254171534652.5WQ37-13-3376171334753WQ50-9-3508339341004WQ15-36-4152503645.5502WQ25-25-4254172545.5652.5WQ40-15-4406671545.5753WQ60-10-46010001045.51004WQ25-32-5.525417325.57.5502WQ30-30-5.530500305.57.5652.5WQ50-15-5.550833155.57.5753WQ45-22-7.545750227.510753WQ100-10-7.51001667107.5101506WQ100-15-1110016671511151450                                 1004WQ140-10-1114023331011151506WQ130-15-1113021671511151506WQ300-7-15300500715201508WQ200-10-1520033341015201506WQ100-20-1510016672015201004WQ180-15-1518030001515201506WQ250-11-1525041671115202008WQ100-22-18.510016672218.5251004WQ140-15-18.514023331518.5251506WQ200-12-18.520033341218.5252008WQ100-30-2210016673022301004WQ200-15-2220033331522301506WQ400-7-224006667722302008WQ180-30-3018030003030401506WQ250-22-3025041672230402008WQ600-9-30600100009304025010WQ900-7-30900150007304030012WQ180-37-3718030003737501506WQ350-25-3735058332537502008WQ600-12-376001000012375025010WQ900-8-37900150008375030012WQ180-45-4518030004545601506WQ400-25-4540066672545602008WQ600-15-456001000015456025010WQ800-12-458001333312456030012WQ400-30-5540066673055752008WQ600-20-556001000020557525010WQ800-15-558001333315557530012WQ350-40-75350583340751002008WQ600-25-7560010000257510025010WQ800-20-7580013333207510030012WQ400-45-90400666745901202008WQ600-30-9060010000309012025010WQ950-20-9095015833209012030012/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
