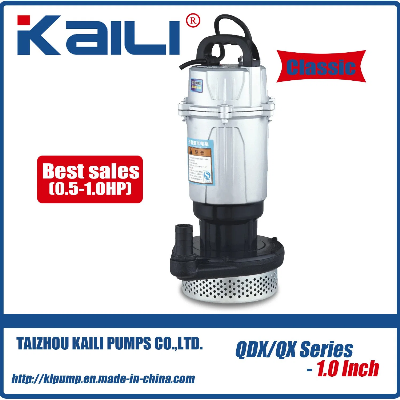

QDX Electric Submersible Water Pumps( Aluminum Housing)With High Quality

  Pump Introduction    QDX, QX series submersible pump consists of pump, mechanical seal and motor. Pump is at the bottom part of pump, which is adopted centrifugal impeller. Motor which is single-phase or three-phase is at the upper part of pump. Seal is used where pump and motor combine, which is a kind of double-end mechanical seal, O rings are applied to all static joints. Float switch can be equipped to control pump's starting and stopping automatically according to the water level.Main Application   This series pump is small and light, which is widely used in countryside for elevating water from well, irrigation, sprinkling and domestic water supply, and also used in draining off water for fishpond and building site.Work conditionsThe pump can work properly and continuously under following operational conditions:1. Medium is not corrosive,Sand contents should be max. 0.01% by volume and      granular size should be max. 0.2mm.2. Medium temperature shouldn't be over 40°C and PH should be 6.5-8.5.3. The pumps should be operated within rated head.4. The pumps should be fully submerged into water with depth of less than 3m       mad max. the pump should be min. 0.5m over the water bottom and not be insert into sludge.5.Power frequency should be 50HZ,single phase  voltage 220V,three phase voltage 380V,and voltage fluctuation should  be 0.9-1.1 times than the rated.Workplace ShowFeatures of Kaili Submersible Pump1. 100% copper wire2. Chrome-plated pump rotor (more resistant to wear and corrode)3. Thermal protector4. High-end bearing and mechanical sealMaterialStructure of pumpMaterialCan be selectedPump bodyAluminumCast-Iron / Stainless steelImpellerAluminumStainless steelPump shaft45 # SteelStainless steelCable/Arbitrary length  SpecificationAppellationModelFlowHead(m)Power(kW)HPPipe sizeVoltage(v)Velocity(r/min)m³/hl/min(mm)(inch)QDXSingle-phaseSubmersiblePumpQDX 1.5-16-0.371.525160.370.52512202860QDX 3-20-0.55350200.550.75251QDX 10-10-0.5510166.7100.550.75401.5QDX 15-7-0.551525070.550.75502QDX 1.5-32-0.751.525320.751251QDX 7-18-0.757117180.751401.5QDX 10-16-0.7510166.7160.751502QDX 15-10-0.7515250100.751652.5QDX 10-16-0.810166.7160.81.125/40/501/1.5/2QDX 1.5-38-1.11.525381.11.5251QDX 10-20-1.110166.7201.11.5502QDX 15-15-1.115250151.11.5652.5QDX 30-9-1.13050091.11.5803QDX 15-18-1.515250181.52652.5QDX 40-9-1.54066791.52803QDX 65-7-2.265108372.231004QXThree-phaseSubmersiblePumpQX 3-20-0.55350200.550.752513803000QX 10-10-0.5510166.7100.550.75401.5QX 15-7-0.551525070.550.75502QX 1.5-32-0.751.525320.751251QX 7-18-0.757117180.751401.5QX 10-16-0.7510166.7160.751502QX 15-10-0.7515250100.751652.5QX 10-20-1.110166.7201.11.5502QX 15-15-1.115250151.11.5652.5QX 30-9-1.13050091.11.5803QX 15-18-1.515250181.52652.5QX 40-9-1.54066791.52803QX 65-7-2.265108372.231004SewageSubmersiblePumpQDX 6-12-0.46100120.40.5525/321/1.52202860QDX 10-15-0.7510166.7150.75125/401.5/2QDX 10-18-1.110166.7181.11.525/401.5/2QX 10-18-1.110166.7181.11.525/401.5/23803000QDXCast-iron bodySubmersiblePumpQDX 3-14-0.37T350140.370.52512202860QDX 3-18-0.55T350180.550.75251QDX 3-24-0.75T350240.751251QDX 3-30-1.1T350301.11.5251QDX 6-32/2-1.5T6100321.52401.5/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
