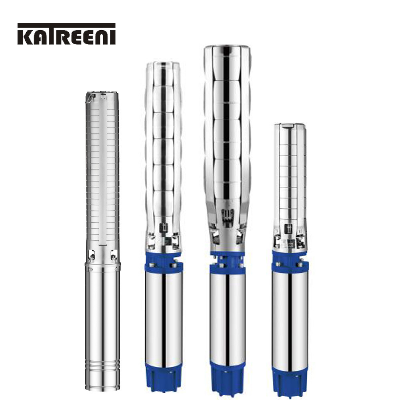

4 Inch Stainless Steel Electric Submersible Anti-Rast Deep Well Pump

Product Description4 Inches SS electric  Submersible Deep Well Pump (4SP8-18)Characters and AdvantagesFlow Range:3.6m3/h-12m3/hHead Range:10m-360mStainless steel impeller, diffuser,outlet,connection.Water lubricated rubber bearing with sand channelHigh efficiency with built-in check valve to prevent back flowUnique laser welding creates maximum strength,durability wear and tear resistance.Applications For water supply from borehole wells. For industrial applications and domestic and civil use.For irrigation in salt influenced water environment.Operating conditions Maximum fluid temperature up to +35 oC Maximum sand content: 0.25% Maximum immersion: 120m. Maximum well diameter: 3", 4",5",6",8",10" Options on requestOther voltages or frequency 60HzSpecial mechanical seal and bearing brand Single phase motor with buit-in capacitor Special automatic digital control box and cable lengthPump and Motor Flow range: 0.6m3/hour to 200m3/hour Head range: 20m to 600m AISI304 motor parts. According to NEMA dimension standard. Curve tolerance according to ISO 9906Material  ComponentsMaterialPump external casing AISI304SS Outlet AISI304SS Connection AISI304SS Diffuser AISI304SS Impeller AISI304SS Pump Shaft 1Cr13                                              AISI304SSShaft coupling1Cr13                                               AISI304SSWear ringAISI304SS&CeramicMoter External CasingAISI 201 SS                                     AISI304SSTop chockCast-iron ASTM NO.30                   Cast-Cu ASTM C85500Bottom supportAISI 304SSMechanical SealGraphite-Ceramic/TC                     Graphite-Silicon cabideMotor Shaft AISI 303SS-ASTM 1045/ 5140BearingC&U                                                OthersSeallubricant oilOil for food manchinery and pharmaceutic use.Product Parameters MODELPOWERRated currentCap. Prot.DELIVERY                n ≈2850 r/min50HZKWHPAuF/AQ m3/h   l/min00.61.21.82.433.64.20102030405060704SP2-60.370.52.325/6H(m)/outlet(inch)1 1/4''3733302724201324SP2-90.370.52.325/65650454136301944SP2-130.550.753.630/78172655952432754SP2-180.7515.240/911299908172593874SP2-231.11.57.450/1214312711510492764894SP2-281.31.88.655/151741541401261129259114SP2-331.521060/1820518216514913210969134SP2-401.82.513.565/2024822019818016013284164SP2-482.2314.975/22298264240216192158101194SP2-553419.5100/30336303275248220182116224SP2-7545.57.5 465414375339300248158294SP2-1105.57.511.6 68260754949744036423243 MODELPOWERRated currentCap. Prot.DELIVERY                n ≈2850 r/min50HZKWHPAuF/AQ m3/h   l/min01.22.433.64.24.8602040506070801004SP3-60.370.52.325/6H(m)/outlet(inch)1 1/4''3733292623191344SP3-90.550.753.630/75650434035281974SP3-120.7515.240/97466585346372694SP3-150.91.26.545/1093837266574732114SP3-181.11.57.450/12112998679695639134SP3-221.31.88.655/1513612110697846847164SP3-251.521060/18155138120110967854184SP3-322.2314.975/221981761541411239968234SP3-393419.5100/3024221517017214912183294SP3-443419.5100/3027224221119416913694324SP3-5845.57.5 359321279255222180124424SP3-805.57.511.6 495441384352307249171584SP3-1107.51017.8 68160652848442234223680 MODELPOWERRated currentCap. Prot.DELIVERY                n ≈2850 r/min50HZKWHPAuF/AQ m3/h   l/min02.43.64.85.466.60406080901001104SP5-40.370.52.325/6H(m)/outlet(inch)1 1/2''25212017151284SP5-60.550.753.630/7383230262318134SP5-80.7515.240/9504340343024174SP5-121.11.57.450/12766460524637254SP5-171.521060/181079084736552364SP5-222.2314.975/22139117109958467464SP5-252.2314.975/221581331241089576534SP5-333419.5100/30208176164142125101694SP5-3845.57.5 239202188163144116804SP5-4045.57.5 252213198172152122844SP5-4445.57.5 277234218189167134924SP5/525.57.511.6 3282772582241981591094SP5-757.51017.8 4733993723232852291584SP5-929.212.519.8 580490457396350281193 MODELPOWERRated currentCap. Prot.DELIVERY                n ≈2850 r/min50HZKWHPAuF/AQ m3/h   l/min03.64.86.68.410.212060801101401702004SP8-50.7515.240/9H(m)/outlet(inch)2''312827252217104SP8-71.11.57.450/12433937343023134SP8-101.521060/18625653494333194SP8-121.8313.565/20746764595240234SP8-142.2314.975/22877874696046274SP8-183419.5100/3011210195887759344SP8-2145.57.5 1301181111039069404SP8-2445.57.5 14913412711810379464SP8-305.57.511.6 18616815914712999574SP8-355.57.511.6 217196186171151116674SP8-407.510      17.8    248    224    212  196      172  132      764SP8-447.51017.8 273246233216189145844SP8-589.212.519.8 359324308285250192111 MODELPOWERRated currentCap. Prot.DELIVERY                n ≈2850 r/min50HZKWHPAuF/AQ m3/h   l/min0369121518210501001502002503003504SP14-51.521060/18H(m)/outlet(inch)2''3432302825201444SP14-72.2314.975/224844423934281964SP14-103419.5100/306863605549402784SP14-1345.57.5 88827772645135114SP14-155.57.511.6 102958983745941134SP14-185.57.511.6 12211410799887149154SP14-217.51017.8 1431331251161038357174SP14-257.51017.8 1701581491381239968214SP14-309.212.519.8 2041901791661481198225  Detailed Photos   Packaging & Shipping                                       Square carton
