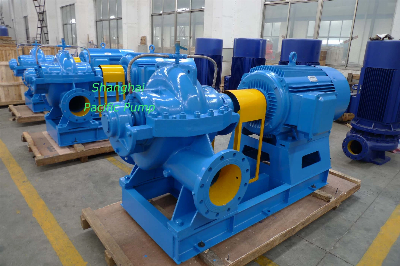

Double Suction Split Case Centrifugal Pump (TPOW)

Technical Parameter:Diameter of outlet: DN80 to DN1500Pump flow range: Q≤ 11600m3/hPump lift head range: H≤ 200mPump working pressure: P≤ 2.5MpaPump working temperature: T≤ 105º CPump working voltage: U=380V, 415V 525V 400V 6kV, 10kVProduct Introduction:TPOW series single-stage double-suction split volute centrifugal pump is produced by our company based on importing the advanced technology from Germany in accordance with the market demand. By using the original and modified impeller and cutting, the pump boasts a full and wide range of spectrum and high service efficiency. The water pump can provide the working points of any flow and lift head required by the user within the spectrum performance range. TPOW pump adopts a hydraulic model with the self-balancing axial force and radial force, which is the best both at home and abroad currently. It boasts stable performance, high efficiency, compact structure, small vibration, strong resistance to pressure of pump body and being easy for installation and maintenance.Main Purpose:TPOW series of product is widely used for water plant, irrigation, drainage pumping station, power station, water circulation of air-conditioning, industrial water supply system, fire system and shipping industry as well as for the general purpose in the oil refining industry.Hydraulic performance:It adopts the internantional advanced computer aided software and the modern design methods(namely optimum design and reliable design approach) for the hydraulic and structural design of the pump so that TPOW double-suction pump boasts efficient and noticeable resistance to cavitation. Compared with home-made like products, this series of product has a 2-4% higher efficiency and noticeably stronger cavitation resistance, which will save a lot of capital for the user.Structural Features:1. Compact structure, space effective and much shorter axial dimensions.2. Small vibration and low noise, achieved mainly by means of the follow:AThe pump casing adopts the double-volute structure;BThe rotor part has short axial dimensions and a good rigidity.C. The pump shaft adopts the imported high-precision bearing for the support.Working Conditions:The maximum working pressure of TPOW volute double-suction pump system is 2.5Mpa, namely pump inlet pressure +pump lift head≤ 2.5Mpa, and the test pressure of pump static pressure is 3.75Mpa. According to the maximum pressure that the pump body can bear, the materials for body and bonnet adopt the grey cast iron(1.6Mpa), spheroidal graphite cast iron(2.0Mpa)and cast steel (2.5Mpa). Please note the pump's bearing pressure or materials in the order. This series of pump can transport the clear water or other liquids with similar physical and chemical properties as clear water with temperture T ≤ 105 deg CType Designation:TPOW 300 - 450(I)ATPOW -TPOW Volute type split casing double suction pump300 - diameter of pump outlet (mm)450 - nominal diameter of impeller (mm)-I - Flow classification-A- rimary cutting of impellerº Cº C
