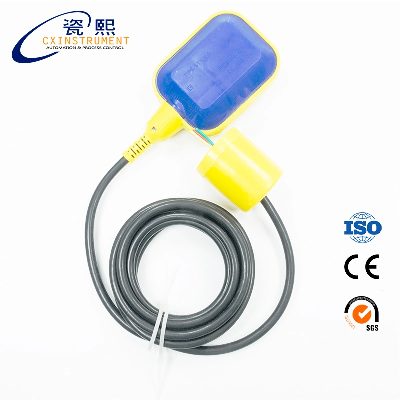

Anti-Corrosion Plastic Material Automatic Water Level Controller

Anti-Corrosion Plastic Material Automatic Water Level ControllerA.[Feature of Magnetic float level switch]Good design and strict production technics;Adopt stainless steel material,high mechanical strength and good sealing;Cable adopt special material, it have high oil,acid,alkali,corrosive resistance.The ON or OFF switch control signal is very reliable and stable,without any error;Easy to installation,convenient to debug,fast fluctuation shift random to select the control range.B.[Parameters] The Magnetic float level switch--Basic production Info Rating current and voltage   10(8A) 250V-10(4A) 380V; Rating power   1Kw Working temperature  -20~170ºC Accuracy  +/-0.05m Working pressure  1 atm Medium   Rinsing;sewage;oil Cable length  Standard is  5meters (can customized for you) Contact capacity  10A /250VAC High tempeature type  ss304 float ball,mercury switch contact,high flexible silicome cable can reach high temperaturer Normal temperature type  ss304 float ball,reed switch or mercury switch contact CCC certificate high-quality rubber cable  It can customized the anti-corrosive stainless float(just for normal temperature type switch) Power life   1×100000 times Machine life   5×100000 times  C.[Installation]Use the black and blue wire.        when the float is on the level surface,the contact is under the obstructed status,when the float is under the water,the contact is turn-on status;Use the black and yellow wire         When the float is on the level surface,the contact si turn-on status,when is under the water,the contact is the obstructure status;Installation of fixed hammer         The level control height is decided by the cable length of magnetic float type level switch and the position of the hammer;The ways of install the hammerDisplace snap ring of the plastic non-cone terminal,and to the appropriate place on the cable.Then let the cable penetrate the terminal of the plastic cone,the snap ring of set on the cable limit the position of the hammer;Finally,fixed the cable outside of the container,let the cable connect to control box and avoid using middle joint.if it need joint forbid to put the joint in he water.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
