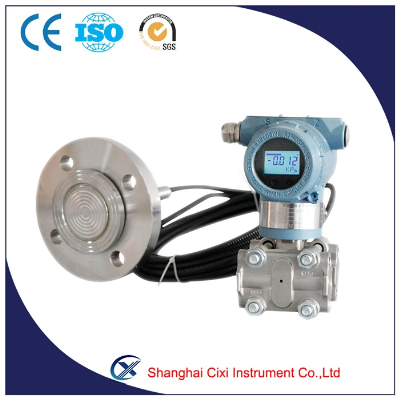

Cx-PT-3351 Flush Diaphragm Pressure Sensor (CX-PT-3351)

CX-PT-3351 flush diaphragm pressure sensor Remote differential/level transmitter is used for prevent the medium in the pipe direct into the transmitter. The capillary (filled with fluid) is connected between pressure sensing diaphragm and transmitter. It is used for measuring liquid, gas or steam's level/flow or pressure, then change it as 4-20mA signal output. CX-PT-3351 remote differential pressure transmitter can use together with Hart handhold device. CX-PT-3351 remote flange type differential pressure/level transmitter can used as the following condition:     1.tested medium is corrosive ; 2.need to isolate high temperature tested medium and transmitter; 3.tested medium has solid seston or high viscosity medium; 4.tested medium leads by lead pressure pipe and easily solidify or crystallize; 5.replace medium need to clean test convertor carefully; 6.test convertor need to keep hygiene. Use for: corrosive or viscosity liquid. Selection   CX-PT-3351remote differential pressure/ level transmitter coderange KPa30-1.3~7.540-6.2~37.450-31.1~186.860-117~69070-345~206880-117KPa~1MPa90-0.4~2.5MPa00-1.6~10MPa codeoutputE4-20mADCSintelligent codeflange materialflange material22316SST316SST codeadditional functionS1one remote device S2two remote device  codeoptionM10-100% linear indicator meterM33digit and a half LCD display meterM4intelligent meter displayB1pipeline installation bend bracketB2board installation bend bracketB3pipeline installation flat bracketdexplosion suppression type dIIBT4iIntrinsically safe type iaIICT6Attn:1.filled 200 series silicone oil, operating temperature -40~+149ºC;filled high-temp proof silicone oil, operating temperature -20~+315ºC.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
