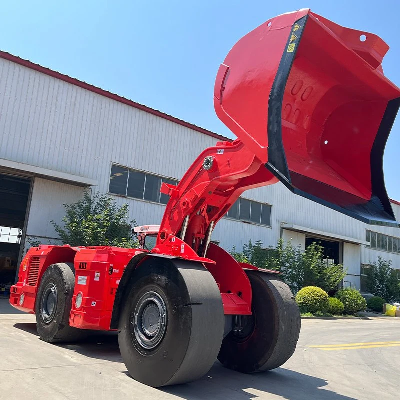

6cbm with Diesel Engine LHD Scooptram Mining Machine Underground Loader

 FKWJ-6 Underground Diesel LoaderProduct DescriptionThe FKWJ-6 scooptram is a 4 ton built for low-seam applications. Efficient and powerful VOLVO  256kW engine, which delivers maximum tramming and loading performance in the most demanding mining applications.Complete system integration of the engine and transmission to ensure fuel efficiency and smooth operation.Large window openings improve visibility, and large handles on either side provide three-point access to the cab and machine. The operator presence system protects the machine and the operator from uncontrolled machine motion.FKWJ-6 Underground Loader has a powertrain tuned specifically for speed on grade mastering poor floor conditions and delivering maximum production in all speed ranges. It has the necessary strength and durability to work in tough conditions, but its precise controls and efficient operation set it apart. It offers superior stability, exceptional digging and lifting, and a variety of efficiency-boosting functions, plus a transmission that delivers constant power.Hydraulic system that provides significantly more breakout force during digging, and that gives the machine faster dumping times at the other end of the cycle. Repositioned front linkage cylinders for better mechanical lift.Features that deliver excellent responsiveness, such as Auto Dig, which automates loading of the bucket; and pilot-controlled steering system to provide more acute feel in tight spaces.Hydraulically actuated auto retarding, which improves cycle times as operators gain confidence and become more comfortable on downhill grades at faster speeds.High hydraulic flow rates that provide fast hydraulic and cylinder response and powerful lift forces, plus large-bore tilt and lift cylinders that deliver exceptional strength, performance and durability.Proven Z-bar loader linkage geometry, which generates powerful breakout force and an increased rack back angle for better bucket loading and material retention.Optional ride control system that reduces fore and aft pitch of the lift arm and bucket, giving operators confidence to travel at speeds above 5 km/h (3 mph) during load and carry operations for fast cycle times.  Product Parameters General Parameter        Loader Weight & CapacityLength  10502mmOperating weight38000 kgWidth(Include bucket)  2864mm Pay load14000 kgHeight(with Canopy)  2545mm Traveling performanceGround clearance    377mm 1 shift forward/backward4 km/hBucket Capacity 6 m³  2 shift forward/backward 8.5 km/hDump angle  39°3 shift forward/backward 15 km/hMax. dumping height   2500mm 4 shift forward/backward 21 km/hDumping distance    1647mmGrade ability15%  (load)Max. tractive effort   270KNMax. Traction  200 KNMax. tipping load285KNMax. Shovel 180 KNBreakout force(Mechanical) 189KN(19278kg)Tyre 18-25Breakout force(Hydraulic) )230KN(23460kg                                             Diesel EngineOscillating angle of rear frame ±8°Manufacturer VOLVO Clearance angle 16°Type Design  Max. Water-cooled diesel engine Torque ConverterPower Max.  256kW/1900rpm Brand American DANATorque 1780Nm/1260rpmModel  C5000Air intake system   dry air filterType Single stage two componentswith hydraulic pump driveExhaust systemECS exhaust gas catalyst/silencer                                                        AxleStarter power/voltage  Delco Remy 6.0kw/24V Brand DANA 16DExhaust quality                                                     Meets U.S. EPA Tier 3  and EU Stage  A Optional KESSLER D91Optional model TAD1351VE/285KW                                                    Bucket                                  Driver CabinMaterialManganese steel Reinforced with 6mm steel panelYESEjector Bucket For optional Side-seat layout with good visionYES                                       Lubrication System Closed Cabin with air conditionerFor OptionalManual lubrication YES                                           Control SystemCentralized lubricationFor optionalManual controlYES                                                     Fire SystemVideo remote control systemlFor optional Manual Fire extinguisher YES     Manual controlYES     Centralized Fire extinguisher For optionalVideo remote control systemlFor optional   Feature1. ROPS/FOPS cabin or canopy with ergonomic controls, clear visibility and automatic fail-safe features. By focusing on safety and operator comfort, we reduce risk and maximize uptime.2. Maximum productivity : With the FKWJ-6 Scooptram's high lift capacity, load-sensing hydraulics, traction control and intelligent rig control, you can achieve more tons of load per hour.3. High ramp speeds, fast bucket fill and high lift for best-in-class production performance . Detailed Photos    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
