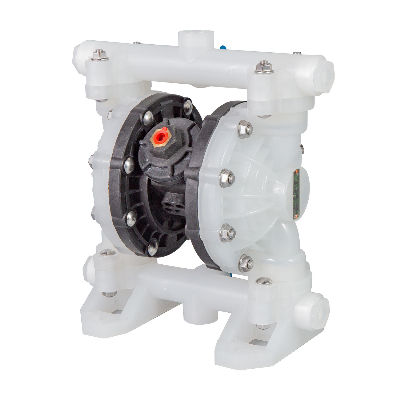

Rd 15 Plastic Air Driven Diaphragm Pump

Diaphragm Pump Advantages:- Never deadstop (three-way pilot type air-distributing valve) - Stable operation - Perfect sealing design - Diaphragms and all sealing parts imported from USA - Easy maintenance Diaphragm Pump Information:- Name: Air Operated Diaphragm Pump - Model Type: RD15PPFF - Wetted Parts: Polypropylene - Seat: Polypropylene - Ball: PTFE - Diaphragm: PTFE - Back-up: Santoprene Diaphragm Pump HS CODE: 8413501090 Diaphragm Pump Packing Status:- Air order: water-proof carton box - Sea order: wooden cases, fumigation free   Type  RD15-PInlet size1/2" ; 3/4"Outlet size    1/2" ; 3/4"Air inlet size1/4"Suction lift (dry)4mMax. working fluid pressure8.4bar ; 0.84MPaMax. flow rate       50lpm(3.0m³/h)Max. delivery lift  70mMax. grain diameter2.5mmWeight  PP pump: 2.7kgPVDF pump: 3.7kgAcetal pump: 3.7kgAvailable body materialPP, Acetal. PVDFPackaging & ShippingOur CompanyRUDI pump (Shanghai Rudi Fluid Conveyor Co., Ltd. ) is a professional manufacturer of air operated diaphragm pump, with over 20-year manufacturing experience in this field. The company has two production bases, three branch offices, and approx. 120 employees in total, among which there are more than 30 engineers. Our pumps have achieved more than 30 patents, CE, ISO9001, SGS certificates. Thanks to the reliable quality, we have won big appraise from our clients all these years. The air operated diaphragm pumps manufactured by RUDI use compressed air as power source, and it is the most advanced type of diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. Compared with other traditional domestic pumps, it has larger flow rate, more stable operation, and smaller pulsation. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity. We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions. Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc. Diaphragm material: PTFE, Santoprene, Viton, Hytrel, Buna-N, etc. Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"Connection type: -Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps. -Fanged connection: Plastic pumps from 1/2" to 3".Our Services*All of the enquiry will be replied within 24 working hours*Professional pump producer, with design team.*All of the goods are packed with standard export carton with foam inside & wooden case (non-fumigation)*Support OEM or ODM*Fast after-serviceFAQQ1: Are you a factory or a trading company?A: FactoryQ2: What're your payments?A: T/T, Western Union, L/C etcQ3: What about package?A: Carton with foam & wooden caseQ4: How about the delivery time?A: Depend on quantityQ5: How about the MOQ?A: Usually, it is 10 pcs for each modelQ6: How about the warranty?A: One year(except for wearing parts)/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
