S. S Pump for Textile Industry/Chemical Industry/Adding Acid Process

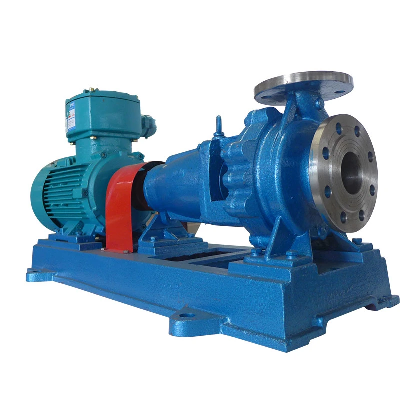

Horizontal non-metallic Flow up to 700 m3/h Centrifugal chemical pump IHF series pump is a horizontal, non-metallic chemical centrifugal pump, compliant with ISO ISO2858, DIN EN 22858. Product NameIHF fluoroplastic lined centrifugal pumpMaterialPTFE/FEP/PVDF/PP lining StandardISO9001, ASME, ANSIFlow rate2 to 700m3/hHead3.8 to 120mVoltage220V/380V/415V/460V or as customer requiredDesign pressure1.6MPaWorking temperature-20ºC to +150ºCWarranty1 yearPump LiquidAcids , Alkalis , Waste water, Strong oxidant, Organic solvents, Corrosive slurries, solvents, Hydrocarbons and other strong corrosive medium, Ammonia water ion film caustic soda etcApplilcationAcid pickling process, Painting process, Textile industryPharmacy and Health, Electroplating industryChlorine water and waste water treatment, Petroleum IndustryChemical Industry, Adding acid process.  Lining process is the Patent technical:The material is virgin, unfilled lining FEP,therefore it has the following features:(1) Considerably easier and more reliable quality control.(2) No reduction in the permeation resistance.(3) Pure pharmaceutical and fine chemical media: no contamination-Robust pump casingPump casing and cover are made of HT200 iron lined with PFA, PTFE, and the impeller is made by WCB and wrappedby PTFA, PTFE, which enables that this type of centrifugal pump could be widely used in corrosive application and wear well.With ductile cast iron armouring absorbs all the hydraulic and pipeworkforces to DIN/ISO5199/Europump 1979. In contrast to partiallyor non-armoured plastic pumps, no expansion joints are required.Flange with service-minded through holes to DIN;ANSI,BS;JIS.For flushing system and monitoring device as required, the draining nozzle will be offered (pump housing picture)-Reliable mechanical sealShaft seal is outside seal, stationary seal is alumina ceramic ( 99.9%), rotating seal is PTFE filling material or according to customer request.If you have any others pump type require, please free contact usFAQQ:Can you supply pump qualified with ANSI and ASME standard?A:Yes, our pump compliant with ISO / ASME/ANSI standard.Q:How to customize pumps and mechanical seals ?A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.Q:How can I pay for my items? What is the payment you can provide?A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sightQ:How long is warranty?A:1 year for main construction warranty.Q:How long is production lead time?A:Normally 15 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7 days.Q:What is the shipping terms you can provide?A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.Q:Who is in charge of after-sales?A:SUNPACE has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.Q:Who is in charge of maintenance?A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours                                                   Send message  Get product Offer & Brochure!!!                                                                   ↓↓↓/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
