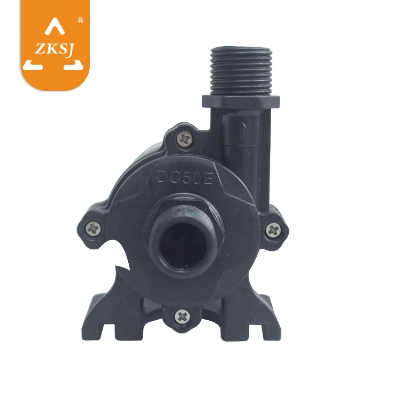

China Household Appliances 12V DC Water Pump for Ice Maker

SpecificationsNO.ItemSpecs1Dimension and weight93.9mmx99.5mmx69.6mm;480g2External diameter of outlet1/2" thread(M20)3External diameter of inlet1/2" thread(M20)4Driving mechanismBrush-less, magnetic isolated design5Material of pump shellABS,PES/SPS/PPS/PA66+30%GF (Optional)6Condition of useCan continuously work, submersible or land use (not self-priming)7Suitable mediumWater, oil, or normal acid/ alkaline liquids(Pre-test needed for special liquid)8Max working temperature60ºC(for T sub-series) or 100ºC(for S/A sub-series)9Power consumption2.5W~48W(for T sub-series) or 2.5W~86.4W(for S/A sub-series)10Rated voltage12Vdc or 24Vdc11Working voltage range5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc12Max load current2.0A (for T sub-series) or 4.5A(for S/A sub-series)13Max horizontal flow rate18L/MIN(for T sub-series) or 26L/MIN(for S/A sub-series)14Max static lift8M(for T sub-series) or 15M(for S/A sub-series)                                  15Noise class30,000hrsIP68(suitable for submersible installation)18Power supplySuitable solar panel, batteries, adapter or other power source19Protection functionDry-run protection, lock protection(customized function)20Power regulation functionSpeed adjustable by PWM signal, 0~5V analog signal or potentiometer (functions are optional for customization)22Featuresmall size with high efficiency,maintenance-freeUse ceramics shaft and carbon fiber sleeveCompletely water proof (IP68)Brush-less dc control without pollution, long life spanOEM and ODM service acceptOffer Pump related control system designPump StructureElectrical parameters (only for reference,parameters can be customized for specific requirements) Model No.VoltageMax load currentMax static liftMax flow ratePower consumption V(dc)AML/HwDC50E-1250T122.05.090024DC50E-1250SDC50E-1250ADC50E-12110S124.511132054DC50E-12110ADC50E-2480T242.08.0108048DC50E-2480SDC50E-2480ADC50E-24150S243.6015156086.4DC50E-24150ANOTE  Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids. When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current).  The head means the Max vertical lifting height of water,the flow is 0L/MIN@max head.  The max flow rate means flow rate with no lifting height(according to the curve bellow)Difference between 2phase & 3phase brushless DC pump2phase (T sub-series) Hall sensor driving, circuit board should be placed inside pump body   3phase(S/A sub-series)NOTE that 3phase dc is completely different with 3phase AC; 3phase DC means 3 pairs of magnetic polarity & sensor-less, power supply  the same with common DC pumpIntelligent program-driving, sensor-less, circuit outside of pump body (main factor that pump can be high-temperature resistant)Speed adjustable by PWM, 0~5V signal or potentiometer(optional)Lock protection,reverse-connected protection, over-vol.&over-current protection,Soft start, no current impact, can be contact directly with solar panelDimensions of pumpproduction testExploded diagram of the product   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
