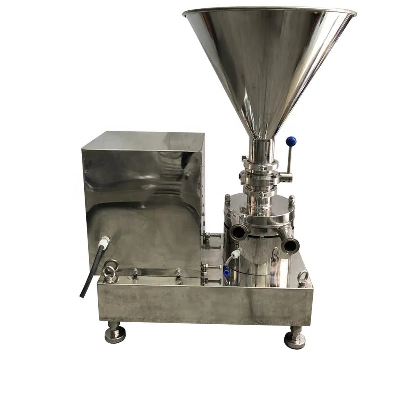

Sanitary Powder Liquid Mixing Flow Pump with Hopper

Factory Price Stainless Steel Food Grade Emulsion Pump Mixing      Product ParametersTechncal Date:Product Name:Single -Stage Homogeneous Emulsifying PumpMaterial:Stainless steel 316L/1.4404Seal Material:FPM(Viton)Max. Flow:50 m3/HMax. Power:90KWTemperature:-20~140 degree centigradeMedia refinement:≤ 100 GRIT (≈200 μm)Mechanical seal:SIC/C/FKM(Standard), optional: SIC/SIC/FKM, SIC/C/FFKM, SIC/SIC/FFKMSurface treatment:RA≤0.8μm, optianl: 0.6μm/0.4μmMechanical seal:Double mechanical sealMotor:ABB/domesticMotor Frequency:50HZ, 60HZAvailable connection:Tri-Clamped, Threaded, Flanged connectionAvailable standard:DIN, SMS, 3A, RJT, ISO, IDFOperated:By electric motorLow discharge :With bottom drain valve, sampling valveTrolley:OptionalControl box:OptionalMotor cover:OptionalCertification:CEApplication scope: Dairy, food, beverage, pharmacy, cosmetics etc   ModelFlow Rate(T)Power(KW)Solid Inlet SizeLiquid Inlet SizeOutletHopper VolumnSolid Suction VolumnConnection WayHHB-10103.0DN65-2.5"DN40-1.5"DN50-2"45L2000kg/hclamp.threadHHB-20204.0DN65-2.5"DN40-1.5"DN50-2"45L3000kg/hclamp.threadHHB-30305.5DN80-3"DN50-2"DN65-2.5"45L4200kg/hclamp.threadHHB-40407.5DN80-3"DN50-2"DN65-2.5"45L5500kg/hclamp.threadHHB-505011.0DN100-4"DN65-2.5"DN80-3.5"65L7000kg/hclamp.thread Application:1- The Mixers are used for solid in liquids.2- In the food-processing industry,they provide a perfect solution for reconstituting powdered milk,making syrups,preparing brines,etc.3- They can also be a solution for preparing solid-liquid mixtures in the phamaceutical,cosmetics and chemical industries.Material:1- Parts in contact with the media:AISI304,AISI316L2- Gasket:EPDM according to FDA3- Mechnical seal(Standard):C/St St/EPDM4- Inside Finished:Mirror Finished≤0.8um5- Outside Finished:Mirror FinishedDesign and Features:1- Simple and versatille assembly for quick and homogeneous mixing of a great variety of solids without contact with the air.Complete mixing with reciculation of the material.In some application,it can be used in line with reciculation.2- 3A Sanitary design3- Easy assembly and disassembly by clamp connections.4- Cleaning can ve carried out without disassembly the unit.5- Sanitary single mechnical sealsOperating Principle1- The Mixer basically consists of a casing and a centrifugal pumps impeller which are mounted vertically.The suction side has a double-wall tube that keeps the inlet of solids separate from that of liquids,thus avoiding the formation before the material enters the casing.2- The liquid enters the mixing chamber at a high velocity,thereby creating a vacuum on the center of the impeller,which causes the suctions of the solids,The fall of the solids can be regulated by means of a valve situated at the bottom of the hopper.It is important to keep low pressure at the suction and at the discharge sides on the blender.Avoid cavitation,thus a feeding pump must be provided only for the applications that really require it(considerable pressure drops at the suction side,high viscosity products,ect.)Please,keep in mind that the suction capacity will decrease.3- When the discharge pressure is high,centrifugal pump needs to be fitted to the discharge side of the blender.4- For viscosities above 500 CP,the feeding pump and discharge pump must be positive displacement pumps.OptionDual cooled SealConnection:SMS,DINPneumatic Actautor Valves60°HopperScreen in the mixing chamberDrainageAdvantage:1. Maintenance, disassembly and installation can be completed without need of professionals and special tools.2. When in installation and debugging, the motor won't be damaged even if with a short reverse rotation.3. Impeller and shaft are connected by key groove. About Us:Wenzhou Compass Machinery Co.,Ltd is one of the manufactures which are capable of producing high precision stainless steel sanitary equipment and pipeline connection parts.We are a modern enterprise which integrates scientific research and production.Compass can provide a variety of products,such as sample valve,divert valve, mix proof valve,pressure relief valve, manual and pneumatic butterfly valve, check valve, diaphragm valve , ball valve, pipe fitting, manhole cover, pump, tube/pipe and other related products. All products can be made according to different materials and industrial standard, such as SMS, DIN, ISO, RJT, DF, BS, DS and BPE. Our products are widely applied to dairy, food, beer, beverage, chemical industrial of equipment, and cosmetic industries. All technical aspects have reached the international leading levels and are in conformance with GMP requirements.Provide process design,machinery manufacturing ,installation,technical training.Compass applies the most advanced CNC machine from Japan for processing,cutting machines, automatic equipment,complete inspection equipment,excellent quality control system, an after-sale service center and strong production capacity. It makes each products go to forefront of our line and shortens the quality gap between imported
