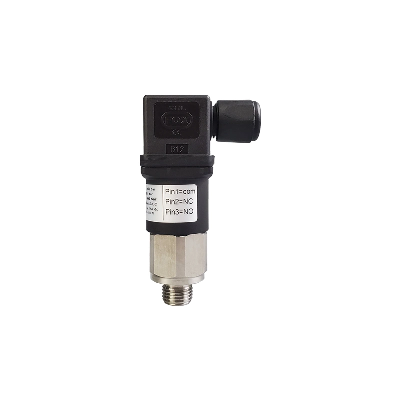

Meokon Water Oil Gas Mechanicall Pressure Switch MD-S700

Product Description:MD-S700 pressure switch achieves switch action through mechanical deformation. The piston contacts with the precision spring in the body. When the pressure changes, the spring expansion range will change too. When the pressure reaches to the set point, the product will send out switching signal. The shell uses 304SS. It is easy to operate and has a long-term stability. Customer can use the accessory tool(alone with the product) to set control point.(The product has preset a control point before leaving factory) The product has been widely used, especially in fire control, automated matching, mining machinery.Technicial Characteristics:Alarm point set by customer, compact size, convenient connectionNC/NO double contact points, contact silver plating and with large capacityWide measurement range(0...400Bar), strong overload capacity(the max 1230Bar)mpact resistance design, high repeatability, be suitable for fire control,hydraulic machinery and other high pressure impact situationsApplications:Fire ControlHydraumatic and Pneumatic SystemElectromechanical Equipment AutomationAutomated MachinerySpecification: Range0.2 ~1...10...25...50Bar Max pressure 300Bar10 ~100...200...400Bar  Max pressure 600BarOverload Capacity> 300Bar (setting range 0.2 ~50Bar);> 600Bar (setting range 50 ~400Bar)Acc. ±2%FS Long-term StabilityTypical:  ±2%FS/yearOperating Temperature -20 ~ 85ºCElectric ContactSilver plating contact pointSettingHexagon WrenchAction HystersisSmall range 10%, large range 15%Sampling Frequency90 times/secMeasurement MediumGas, water, oilPressure Connection M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4Connector Material304SS, copper, galvanized steelShell Engineering PlasticsWeight0.1Kg /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
