Fzm API610 Centrifugal Mining Coal Chemical Pumps, Slurry Pump

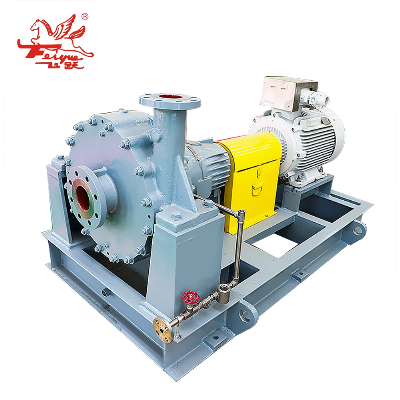

Basic Info.Product DescriptionHorizontal Centrifugal Industrial Coal Chemical Pump  Product DescriptionConform to design standard of API610 Flow range: 3~2400m3/hLift range:4~180mDesign pressure: 10MPa at mostApplication temperature:-40~+180ºCApplication field:transport all kinds of clean or particle contained liquids, neutral or corrosive liquids, normal-temperature or high-temperature liquids. Mainly used in gasification sections of coal chemical engineering,coal liquefaction,coal to hydrogen,coal to methane, coal to olefin, coal to gas,synthetic ammonia, petroleum and petrochemical engineering etc, and transportation of wear-resisting, anti-corrosive coal water slurry medium.Product overviewMedium property: 5%~30% solid content black water, temperature≤ 150ºC, with little NH3, H2S, CO2, Fe, easy scaling, corrosive.The problems caused by transporting solid particle contained medium are serious scour and corrosion to transflux parts and mechanical seal. According to this problem, a. Choose suitable materials for transflux parts such as pump body, impeller and pump cover, both extending the service life of wear resisting components and providing convenience for user's maintenance; b. Apply low rotation speed pump, improving its scour resisting performance; c. Take corresponding measures for mechanical seal: add throttle ring at mechanical seal, make the pump operate under a good working environment and ensure the long and reliable operation of mechanical seal. It simplifies equipment maintenance process and reduces repairing cost, much improving equipment operation reliability.Product specificationFZM coal chemical pump is applicable in the following parameter range:1.Flow:3~2400m3/h2.Lift:4~180m3.Rotation speed:1500r.p.m,3000r.p.m4.Particle content in medium:0~30%5.Medium temperature:-40~+180ºC6.All kinds of corrosive medium7.Product model:FZAM80-400FZM-product code80~400 - outlet flange diameter(nominal) Φ80, impeller nominal diameter Φ400.Pump structure chart and description1. FZM coal chemical pump is mainly made up of pump body, impeller, pump cover, seal component, axis,bearing box according to working conditions. It has 3 structures according to medium condition and performance parameter.2.Structure 1:mainly used for lift≤ 50m slag pump, low-pressure ash water pump, settling tank feed pump, mill coal water pump and pump of solid content < 5%. Structure 2: mainly used for lift > 50m slag pump, low-pressure ash water pump, settling tank feed pump, mill coal water pump and pump of solid content < 10%. Structure 3: mainly used in settling tank underflow pump of solid content < 30%, filter feed pump etc.3.Pump Iransflux part is made of wear resisting and anti-corrosive alloy(Ni-Hard).4.Rotator component is made up of axle, axle sleeve and impeller.5. Bearing is assembled in bearing box. It supports rotator and bears axial force and radial force. This system applies cylindrical roller bearing and angular contaci ball bearing combination. Use Iubricants for lubrication.6. The pump is driven by motor through flexible extended diaphragm coupling. Impeller rotating direction is counter-clockwise from pump inlet. Pump inlet is horizontal direction and outlet is vertical direction.7. This series of pump applies mechanical seal. Flush program applies API682:PLAN11 or PLAN32 according to working conditions.8.This series of pump must have performance and operation tesis before leaving the factory. The test report should be supplied to the customer together with the pump.  Sealing parts figureChart1Before pump cover2Imported liner3Plate(front and back)4Impeller5Pump body6Seal cover7Mechanical seal8Machine sealing collar9Throttling ring10After pump cover11Axle12Vent cap13Front bearing14Front axle bearing cover15Before the dust disk16Oil draining bolt17Oil standard device18Ater the dust-proo plate19Rear axle bearing cover20After bearing21Bearing box22Support arm      Product ParametersPerformance parameters of the tableCompany ProfileFAQ  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
