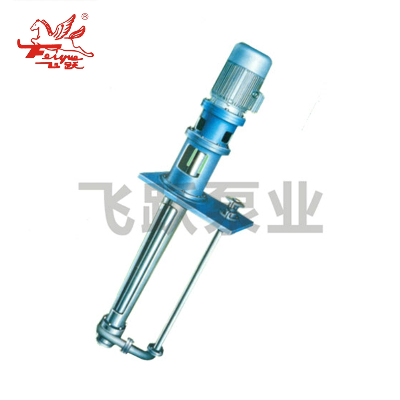

Ljya Wear Resistant Vertical Slurry Pump for Mining Industry

LJYA Wear Resistant Vertical Slurry Pump  for Mining  Industry Product Description Conform to design standard of API610Flow range: 10~400m2/hLift range: ~50mDesign pressure: 2.5MPa at mostApplication temperature: -40~150ºCApplication field: Transport all kinds of solid particle contained neutral or strong corrosive medium.Mainly used in industries of oil refinery,petrochemical engineering,low temperature engineering,coal chemical industry, chemical fiber, and general industrial process,power plant, environmental protection engineering, marine industry, seawater desalination phosphoric acid, ammonium phosphate.SummaryModel LJYA series slurry pump is a cantilever type single - stage - suction centrifugal submerged pump. Its blade whe-el is a semi-open type. In the front and back of the blade wheel installs an abrasio - resistant cover. The pump is widely used in chemical process for conveying medium containing less than 30% solid granules and with viscosity less than 200cp, which is subject to the interaction of corrosion and abrasion. It is especially suitable for conveying such medium as phosphoric acid, triammonium phosphorate slurry, etc. In general, the temperature of the conveying medium is less than 110ºC. When conveying medium with higher temperature, the bearing should be cooled with cooling water.Perfo-rmance scope: flow Q=10-400m2/h, Lift H=5-50m.The FLX type series anticipates the syrup circulates to pump to 3~1000000/year in ton phosphorus ammonium engin-eering in side of an effect two effects anticipates syrup evaporate concentrated circulate of important kit Equipments, should pump to have efficient and high, vapor eclipse function good etc. Characteristics, is Replace the optimization product that import the equipments. That series pump is extensive at the same time should use for the other industry in chemical engineering,petroleum, metallurgy, deckle... Etc. Section.Main manufacture materials and applicable medium.CodeApplicable mediumCW-2(CD4MCu)Suitable for diluted sulfuric acid,phosphoric acid by wet process, triammonium phosphate slurry. electrolyte of metallurgy of non-icrrous metals.904,UB-6Suitable for diluted sulfuric acidCB7CuWeak corrosive sand slurry, slag slurry, as well as the camallite and halogen liquid in theproduction of potassium fertilixers.316,Mo2TiDiluted nitrie acid, phospharie acld, organic acid and medium containing smallamount of sulfuric acid or chlorion304,18-8Diluted nitric acid,organic acids.Besides the above materials, other manufacture materials can also be chosen according to user's need.Chart1Coupling2Electric frame3Bearing gland4Bearing sleeve5Bearing box6Bearing7Floor8Liquid pipe9Intermediate to take over10Pump shaft11Elbow12After the lining board13The impeller(open)14Before the liner15The impeller nut16Before the pump cover    1Screen2Before the pump cover3Before the liner4Impeller5Pump body6After the lining board7Under the takeover8Shaft9Pay the impeller10Middle frame11Bearing gland12Bearing13Oil baffle14Bearing box15Gas pipe16Floor17Bearing box18On the bearing19Bearing gland20Coupling21Electric frame22And a half of the flange23Liquid pipe24Diffusion tube25Elbow          Product ParametersPerformance parameters of the table Company ProfileFAQ/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
