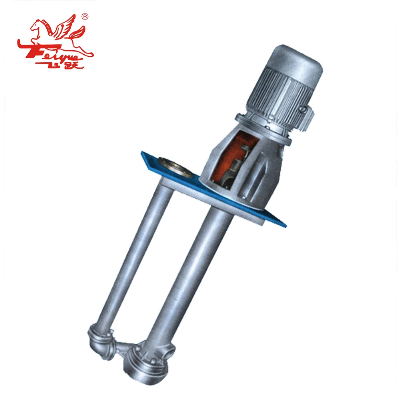

Lsb Vertical Non-Clogging Submersible Pump, Solid Slurry Pump, Centrifugal Slurry PumpProduct DescriptionConform to design standard of ISO2858/GB/T5656Flow range: 1.6~2600m2/hLift range: 5~132mDesign pressure: ~1.6MPaApplication temperature: -40~180ºCApplication field: This series of pump is mainly used in industries of oil refinery, petrochemical engineering, low temperature engineering, coal chemical industry, power plant, environmental protection engineering, wastewater treatment, cement plant etc. Suitable for transporting all kinds of clean, particle free or certain particle contained, neutral or corrosive medium.SummaryFY type vertical centrifugal submerged pump is applicable to convey clean water, sewage and corrosive media, which also available to convey abrasive corrosive media via changing material and partial structure.Mainly appliedThermal power plant Chemical factory Food industry Steel making plantPharmacy industryPapemraking factoryCement factorySewage processing factoryParameter rangeCapacity:Q=1.6~2600m2/hHead:H=5~132mWorking pressure:P=1.6MPaWorking temperature:θ =-40ºC~+180ºCUnder water depth:L≤10mMeaning of model codeA-Impeller cutting code32-Design - point head(m)FY-corrosion-resistant submerged pump series code80- Inlet diameter(mm)Chart1Motor2Coupling3Electric frame4Bearing gland5Round nut6On the bearing7Axle8Bearing box9Liquid pipe10And a half of the flange11Floor12Bearing13Bearing gland14Under the takeover15Bushing clamp16Bushing17Pump cover18Under the collar19Impeller20Pump body21Impeller nut 1Screen2Pump body3Impeller4Pump cover5Axle sleeve6Shaft7Under the takeover8Guide bearing parts9Takeover10Even the axis parts11On the shaft12On taking over13Seal seat14Packing seal15Bearing gland16Bearing17Bearing box18And a half of the flange19Floor20Cooling water pipe21Liquid pipe Product ParametersPerformance parameters of the tableCompany ProfileFAQ/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
