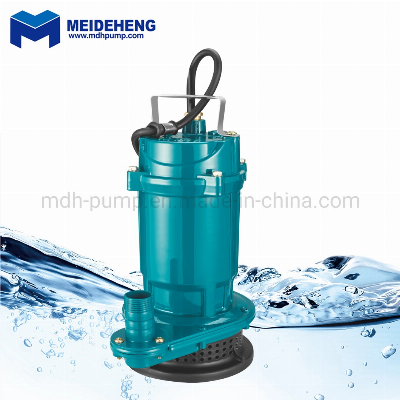

Mini Single Phase 220V AC 180W Qdx Submersible Clean Water Pump

Q(D)X Series Submersible pump  ApplicationsFor water supply from wells or reservoirs. With small size and light weight, the QDX/QX Series pump is especially suitable for the rural wells water pumping, the farmland irrigation and drainage, garden watering, water spraying and households water supply, as well as other applications such as industry, aquaculture, construction sites and many other commercial applications.  Features1. New-designed motor structure, longer service life.2. Portable and durable aluminum alloy structure.Operating conditions  Liquid PH: 6.5-8.5 Maximum liquid temperature: +40ºCMaximum ambient temperature: +40ºCMaximum immersion depth: 5mMaximum sand content: 0.1%. The grain diameter of suspended solids up to 0.2mmMotor and PumpInsulation class: BProtection class: IP68Pump body: Cast aluminum Motor bracket: Cast iron.Impeller: Aluminum alloy or plastic impellerMotor shaft: The heat treated steel shaft Mechanical seal: Ceramic-Graphite, Silicon Carbide-Carbide alloy.Copper winding 2-pole induction motor.Single-phase:220V-240V/50HzThree-phase:380V-415V/50HzSingle-phase with capacitor and thermal overload protection.Optional available on requestSpecial mechanical seals, shaft , bottom cover, net Single phase can add float switch Other voltages or frequency: 60HzTechnical Parameter Structure ChartThe workshops FAQQ1: Are you a factory?A: Yes. We are a pump factory with more than 20 years professional experience of manufacturing water pumps.Q2.What is your MOQ of this pump?A: Our MOQ is a full 20ft container, but we can accept a trial order to check the quality as the first cooperation.  Q3: Is it acceptable to make customers' own brand?A: Sure, we can do OEM. Q4: What is your payment term? A: We usually do 30% T/T deposit and 70% against documents, or L/C at sight. Q5: How long is your warranty?A: One year!  Q6: What is the delivery time?A: 25-30 days after receiving your L/C or T/T deposit.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
