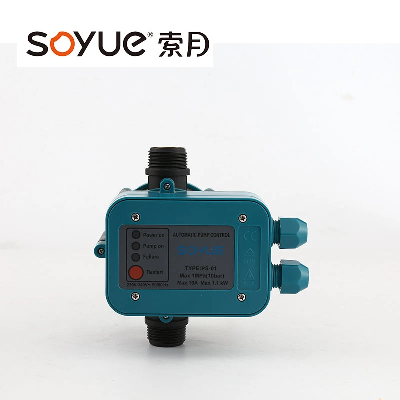

Automatic Pump Control, Pressure Control, Pressure Switch for Water Pump

TECHNICAL SPECIFICATION• Rated Voltage: 110V / 220V / 85V-285V• Max Current: 10A / 20A / 30A• Frequency: 50 / 60Hz• Max Power: 1.1KW / 1.8KW / 2.2KW• Connection Thread: G1'' / G1 ¼'' / G1 ½''• Start Pressure: 1.0Bar / 1.5Bar / 2.2Bar / 1.0-4.0Bar• Max Working Pressure: 10Bar• Protection Grade: IP65• Max Working Temperature: 60ºC• Color: Optional• Cable: Optional• Pressure Regulator: OptionalPACKING DETAILSMODELPACKINGCARTON SIZEN.W./G.W.LOADING QUANTITYPS0112PCS/CTN52*47*37CM16/17KGS20GP: 3600PCS    40HQ: 9000PCS  FUNCTIONS• Delay Startup:   The pressure controller delays to start 3 seconds after the current is switched on to protect the water pump and personnel safety.• Dry Running Protection:   After 3 minutes without water detected, the controller will cut off current source automatically.• Automatic Restart:   Automatically restart to test water flow until water supply going stable.• Stop pump automatically:   When stop using water, the intelligent control system will inspect automatically and control the pump to slow down and stop operating.• Flow Control:   When the outlet water flow becomes small, the intelligent control system will inspect automatically and switch to small flow to guarantee   normal use of the water pump, which infinitely extends the life span of the pump and authentically realize the barrier-free operation of   water pump.• Machine Crash Protection:   Long-time without operation, the water pump will automatically operate and work for 8 seconds in every 72 hours to clean dirty water to prevent   water pump breakdowns.• Overload Protection:   The intelligent system is equipped with heat overload protector to prevent water pump being overheated and damaged under abnormal use.  WHY WE ARE RELIABLE?• Manufacture Experience: More than 12 years R&D experience, one of leading pump control manufacturer in China.• New Material: For every production, we all use non-recycling material, high strength reinforced polyamide.• Product Inspection: Every products is under 100% inspection to ensure the quality.• Warranty: We offer 1-year quality warranty for every of our products.• Certificates: CE, ISO9001, RoHS, TUV, UL etc. FAQ• Are you a direct manufacturer or a trading company?   We are a reliable and professional manufacturer with rich R&D experience. • What products do you offer?   We mainly produce and provide automatic pressure controls, float switches and accessories for water pump.• How about production leading time?   Generally within 30 days after receiving your payment, 45days for busy season.• Can you make customized products?   Yes, we have the ability to make customized products according to your requirements.• What terms of payment do you accept?   T/T, L/C, D/P or other terms. We will confirm payment term with you when we quote.FACTORY TOUR/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
